Product Details:
|
| MODEL NUMBER: | G150XTN03.0 | BRAND: | AUO |
|---|---|---|---|
| RESOLUTION: | 1024(RGB)×768 [XGA] 85PPI | BRIGHTNESS: | 350 Cd/m² (Typ.) |
| TEMPERATURE RANGE: | Operating Temperature: 0 ~ 65 °C ; Storage Temperature: -20 ~ 65 °C | Configuration: | RGB Vertical Stripe |
| Highlight: | WLED LVDS AUO LCD Display,CCFL LVDS AUO TFT LCD |
||

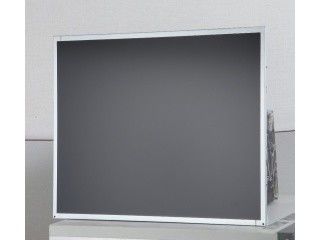

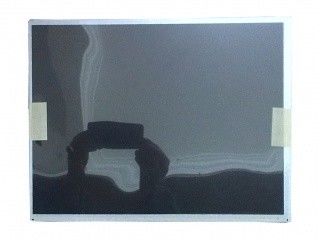

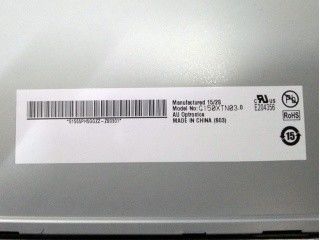

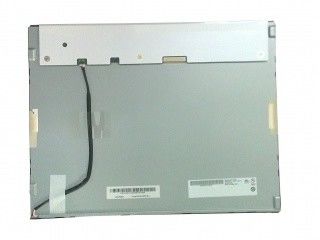

The G150XTN03.0 is a 15.0 inch diagonal a-Si TFT-LCD display panel product from AU Optronics Corp. (hereafter called AUO), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of 0 ~ 65°C , a storage temperature range of -20 ~ 65°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized by Panelook in the following: WLED Backlight, With LED Driver, 6/8 bit, Matte . Based on its features, Panelook recommend that this model be applied to Industrial etc. According to the information stored in Panelook this model mass production on Q3, 2012 and last shippment on Q3, 2018, Now this model is discontinued. There are 13 items stock and 1 suppliers of this model on Panelook. We inputted this model's specification on Apr 2 2013 for the first time, and the latest update on Sep 12 2023. If you want to embed G150XTN03.0 LCM in your future product, Panelook strongly recommend that you should contact with AUO or it's agent to learn lateast production and specification detail. The G150XTN03.0 production status marked on Panelook.com is for reference only and should not be used as the basis for the user's decision making. All specification details are inputted by Panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
| Screen Size : | 15.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1024(RGB)×768, XGA | RGB Vertical Stripe | 0.099×0.297 mm | 0.297×0.297 mm [85PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 304.128×228.096 mm | 313.55×237.25 mm | 326.5×253.5 mm | 12.0 (Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 1.20Kgs (Max.) | - | Antiglare, Hard coating (3H) | ||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 350 cd/m² (Typ.) | TN, Normally White, Transmissive | 700:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| - | 85/85/80/80 (Typ.)(CR≥10) |
5.7/2.3 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6485K | 262K/16.2M (6-bit / 6-bit + FRC) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 60% | 84% | 63% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 63% | 45% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type (Bottom side) | 30K(Min.) | - | - | No | |
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| With LED Driver | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| E&T | 3808K-F05N-02R | 1 pcs | 5 pins | 1.25 mm | ||
| WLED Driver Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 12.0±1.2V | 0.70A (Typ.) | 8.4/10W (Typ./Max.) | ||||
