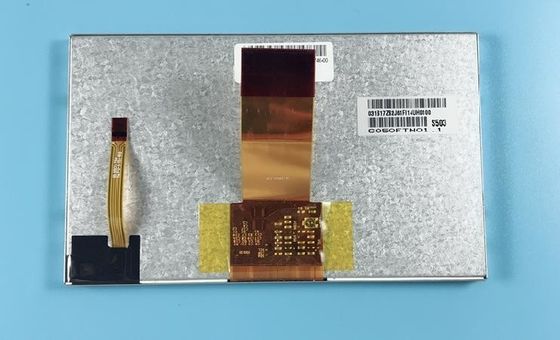

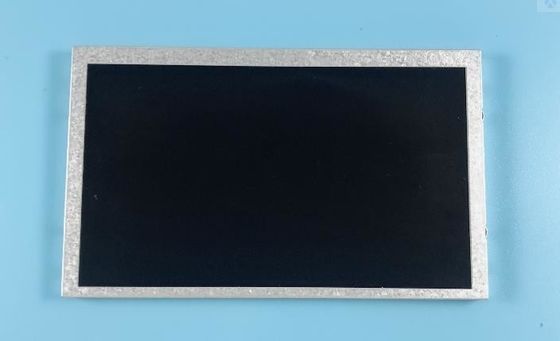

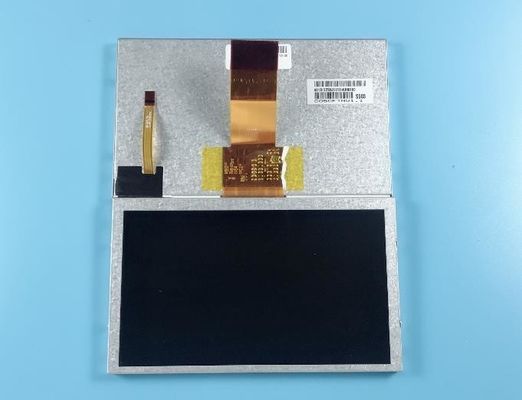

Product Details:
|
| MODEL NUMBER: | C050FTN01.0 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 5INCH | RESOLUTION: | 480×234RGB |
| BRIGHTNESS: | 1100CD/M2 | TEMPERATURE RANGE: | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 95 °C |
| High Light: | WLED LVDS AUO LCD Display,CCFL LVDS AUO TFT LCD |
||
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| C050FTN01.0 | a-Si TFT-LCD , LCM | - | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| -30 ~ 85 °C | -40 ~ 95 °C | 2.9G (28.4 m/s²) |
| Screen Size : | 5.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 480(RGB)×234 | RGB Vertical Stripe | 0.077×0.267 mm | 0.267×0.267 mm [106PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 110.88×62.478 mm | 114.4×66.65 mm | 124×75.36 mm | 5.5/8.25 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 16:9 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 93.5±0.9g | - | - | ||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 1100 cd/m² (Typ.) | TN, Normally White, Transmissive | 600:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| - | 60/60/60/40 (Typ.)(CR≥10) | 16 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6455K | 16.7M (8-bit) | X:0.314; Y:0.326 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 65% | 90% | 69% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 68% | 49% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.43 (Max.)(9 points) | ||
| Performance : | 3D Technology | Outdoor Visibility | Reflectance |
| - | Sunlight Readable | - | |
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (U/D, L/R) |
| Time Controller (T-CON) : | Embedded T-CON |
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 10K(Min.) | 5S2P | 2 strings | - | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 15/17V (Typ./Max.) | 80/85mA (Typ./Max.) | |||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | FPC | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| 1 pcs | 8 pins | 0.5 mm | ||||
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 20/30mA (Typ./Max.) | 50/60mW (Typ./Max.) | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| Parallel RGB (1 ch, 8-bit) | FPC | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| 1 pcs | 40 pins | 0.5 mm | ||||
