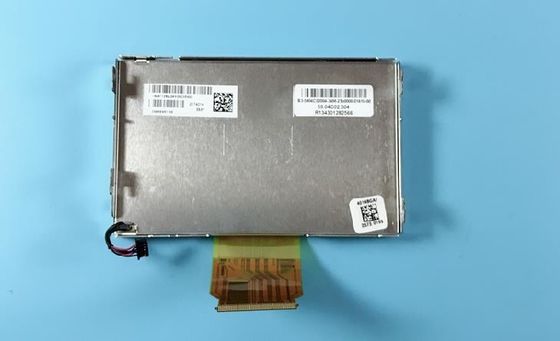

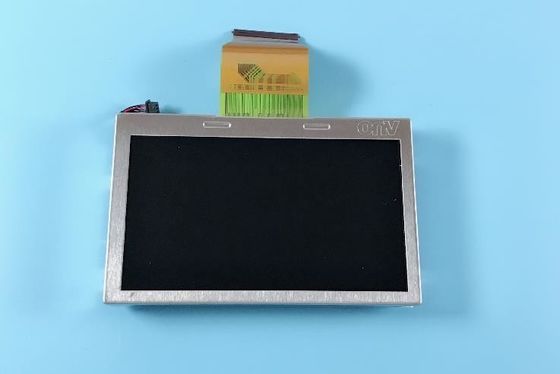

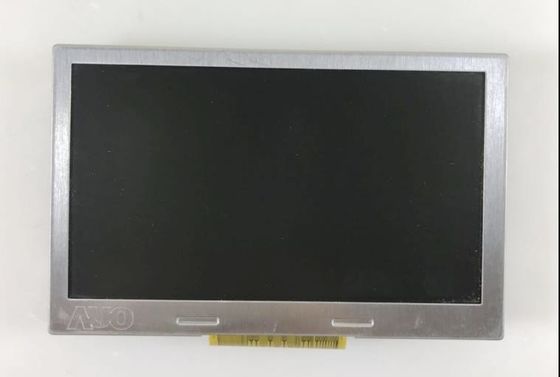

Product Details:
|
| MODEL NUMBER: | C043GW01 V1 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 4.3INCH | RESOLUTION: | 400×234RGB |
| BRIGHTNESS: | 600CD/M2 | TEMPERATURE RANGE: | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C |
| High Light: | WLED LVDS AUO LCD Display,CCFL LVDS AUO TFT LCD |
||
| Basic Detail : | Manufacturer | Model Name | C043GW01 V1 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | C043GW01 V.1 | |
| Panel Size | 4.3 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | -30 ~ 85 °C | ST Temperature | -40 ~ 95 °C |
| Vibration Level | 2.9G (28.4 m/s²) | RoHS |
| Basic Information : | Luminance | 600 cd/m² (Typ.) | Contrast Ratio | 400 : 1 (Min.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 6 o'clock | Response Speed | 15/20 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 60/60/40/60 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.330 | Support Color | 16.7M (8-bit) |
| Color Temperature | 6638K | White Uniformity | 1.43 (Max.)(9 points) |
| Pixel Features : | Number of Pixel | 400(RGB)×234 | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.079×0.225 mm | Pixel Pitch(W×H) | 0.237×0.225 mm [108PPI] | |
| Physical Size : | Active Viewing | 94.8(W)×52.65(H) mm | Overall Dim. | 105.33(W)×65.63(H) mm |
| Bezel Opening | 96.57(W)×54.42(H) mm | Overall Depth | 5.53 (Typ.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | ||
| Other Detail : | Mass | 58.8±5.9g | Surface | - |
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Signal Electrical : | Input Current | 70/80mA (Typ./Max.) | Input Voltage | 3.3V (Typ.)(VDD) | ||
|---|---|---|---|---|---|---|
| Consumption | 231/288mW (Typ./Max.) | Signal Interface | Parallel RGB (1 ch, 8-bit) | |||
| Logic Voltage for Signals : | 0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VIH | |||||
| Interface Features : | Position | - | Physical Type | FPC | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| 1 pcs | 0.5 mm | 40 pins | DRGB-40P1C8B-005A | |||
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | - | Life | 10K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 80mA (Typ.) | Input Voltage | 17.5V (Typ.) | ||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | PAP-02V-S | 1 pcs | 2.0 mm | 2 pins | ||
