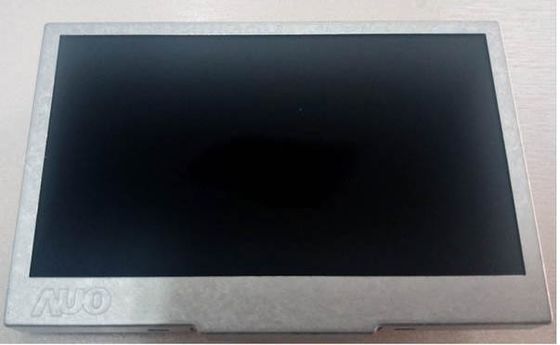

Product Details:
|
| MODEL NUMBER: | C042FAN01.0 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 4.2INCH | RESOLUTION: | 480×272RGB |
| BRIGHTNESS: | 500CD/M2 | TEMPERATURE RANGE: | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C |
| High Light: | WLED LVDS AUO LCD Display,CCFL LVDS AUO TFT LCD |
||
| Basic Info : | Panel Brand | Panel Model | C042FAN01.0 | |
|---|---|---|---|---|
| Diagonal Size | 4.2" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | -30 ~ 85 °C | Storage Temp. | -40 ~ 95 °C |
| RoHS State | Vibration Rating | 2.9G (28.4 m/s²) |
| Pixel Features : | Pixel Format | 480(RGB)×272 [WQVGA] | Dot Pitch | 0.0645×0.1935 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.1935×0.1935 mm (H×V) [131PPI] | |
| Mechanical Size : | Display Area | 92.88×52.632 mm (H×V) | Bezel Area | - |
| Outline Dim. | 102.5×68.52 mm (H×V) | Outline Depth | 8.4/14.2 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | ||
| Other Features : | Weight | 102g (Typ.) | Surface | Antiglare |
| Basic Information : | Brightness | 500 cd/m² (Min.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/80/80 (Min.)(CR≥10) | Optical Mode | AHVA, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 13/14 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.297; Wy:0.310 | Color Numbers | 262K (6-bit) |
| Color Temperature | 7740K | White Uniformity | 1.43 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 64% | sRGB | 90% coverage |
| Adobe RGB | 67% coverage | DCI-P3 | 67% coverage | |
| Rec.2020 | 48% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Frame Frequency : | 60Hz |
|---|---|
| Reverse Scan : | Yes (U/D, L/R) |
| Back-light Features: | Lamp Shape | 3 strings | Lamp Type | WLED | Life Time | 10K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 2S3P | Position | Direct light type | |
| Lamp Electrical : | Voltage Input | 6.1±0.7V | Current Input | 80mA (Typ.) | ||
| Interface Features : | Type | Included in panel signal interface | Position | - | Lamp Driver | No |
| Signal Systerm : | Parallel RGB (1 ch, 6-bit) + SPI | Logic Voltage | 0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 27/35mA (Typ./Max.) | ||
| Interface Features : | Type | FPC | Position | - | ||
| FPC Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| 0.5 mm | 50 pins | 1 pcs | ||||
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
