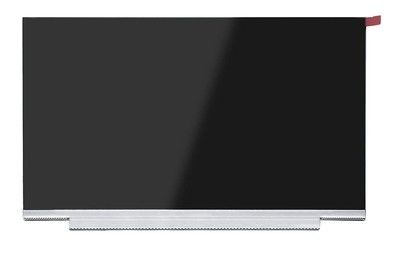

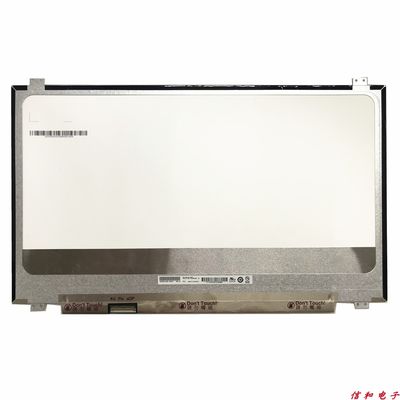

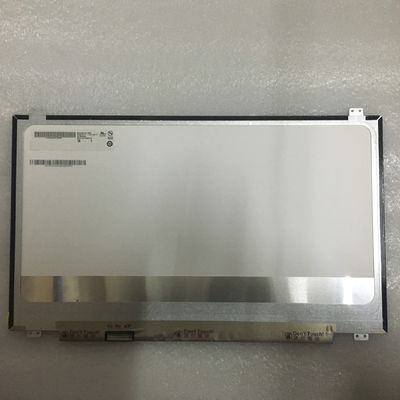

Product Details:
|
| MODEL NUMBER: | B173HAN03.0 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 17.3INCH | RESOLUTION: | 1920×1080RGB |
| BRIGHTNESS: | 300CD/M2 | TEMPERATURE RANGE: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| High Light: | WLED LVDS AUO LCD Display,CCFL LVDS AUO TFT LCD |
||
| Basic Information : | Brand | Model | B173HAN03.0 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For |
|
|
| Screen Size | 17.3" | Alias | AUO309D | |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
| RoHS | Vibration | 1.5G (14.7 m/s²) |
| Pixel Features : | Resolution | 1920(RGB)×1080, FHD | Dot Pitch(mm) | 0.0663×0.1989 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.1989×0.1989 (H×V) [127PPI] | |
| Mechanical Size : | Active Area(mm) | 381.888(H) × 214.812(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 398.1(H) × 250.5(V) | Depth(mm) | 4.0 (Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | Flat (PCBA Flat, T3.4~4.0mm) |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Mounting : | Face mounting holes (8 pcs) on up, down slugs | |||
| Other Spec : | Weight | 550g (Max.) | Treatment | Antiglare, Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 300 (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Display Mode | AHVA, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 9 (Typ.)(Tr+Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 16.2M (6-bit + FRC) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.60 (Max.)(5/13 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 72% | sRGB | 93% coverage |
| Adobe RGB | 72% coverage | DCI-P3 | 74% coverage | |
| Rec.2020 | 53% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Frame Rate : | 144Hz |
|---|---|
| Reverse Scan : | No |
| Power Consumption : | 8.8W (Max.) |
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 800mA (Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 2.4W (Max.) | |||||
| Signal Type : | eDP (4 Lanes) | Signal Voltage | - | |||
| Interface Features : | Position |  |
Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| I-PEX | 20455-040E-12R | 1 pcs | 40 pins | 0.5 mm | ||
| Backlight Features: | Shape | - | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | - | Life Time | 15K(Min.) (Hours) | |
| Interface Features : | Position | - | Type | Included in panel signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 8.0/12.0/21.0V (Min./Typ./Max.) | Current Supply | - | ||
| Consumption | 6.4W (Max.) | |||||
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
