Product Details:
|
| MODEL NUMBER: | G101STN01.2 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 10.1 | RESOLUTION: | 1024(RGB)×600 (WSVGA) 117PPI |
| BRIGHTNESS: | 350 Cd/m² (Typ.) | TEMPERATURE RANGE: | Storage Temp.: -30 ~ 70 °C Operating Temp.: -10 ~ 60 °C |
| High Light: | WLED LVDS AUO LCD Display,CCFL LVDS AUO TFT LCD |
||

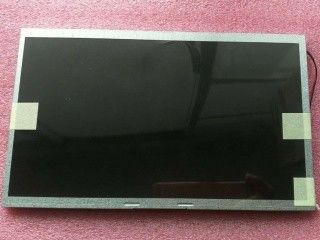

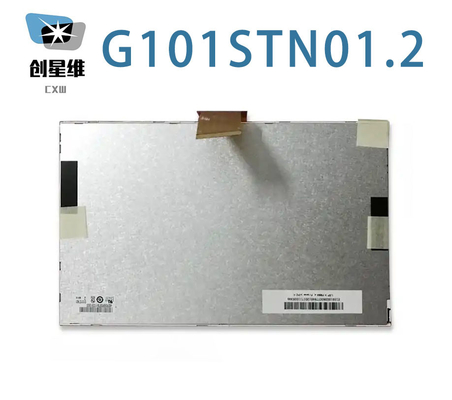

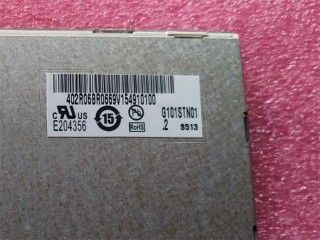

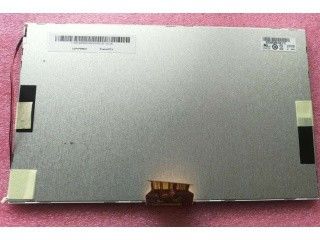

AU Optronics Corp. (hereafter called AUO) G101STN01.2 is a 10.1 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -10 ~ 60°C , a storage temperature range of -30 ~ 70°C .
| Basic Information : | Luminance | 350 cd/m² (Typ.) | Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | - | Response Speed | 7/9 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 70/70/60/60 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.25 (Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 46% | sRGB | 64% coverage |
| Adobe RGB | 48% coverage | DCI-P3 | 47% coverage | |
| Rec.2020 | 34% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 1024(RGB)×600 [WSVGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.0725×0.2088 mm | Pixel Pitch(W×H) | 0.2175×0.2088 mm [117PPI] | |
| Physical Size : | Active Viewing | 222.72(W)×125.28(H) mm | Overall Dim. | 235(W)×143(H) mm |
| Bezel Opening | 224.72(W)×127.28(H) mm | Overall Depth | 5.0±0.5 mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | ||
| Fixation : | Without | |||
| Other Detail : | Mass | 340g (Max.) | Surface | Antiglare, Hard coating (3H) |
| Lamp Features: | Lamp Shape | Array | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 8S3P | Life | 50K(Typ.) (Hours) | |
| Lamp Electrical : | Input Current | 90mA (Typ.) | Input Voltage | 25.6/31.7V (Typ./Max.) | ||
| Consumption | 2.3/2.85W (Typ./Max.) | |||||

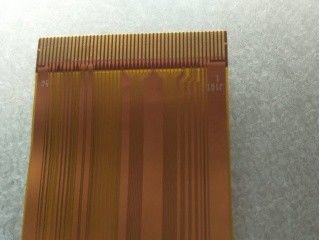

| Interface Features : | Position | Physical Type | Connector | |||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| E&T | H201K-P02N-02B | 1 pcs | 1.25 mm | 2 pins | BLE-2PINS-AC | |
