G190EG02 V0 AUO 19.0 INCH Life ≥ 50K hours，With LED Driver，Upside I/F，Matte Mass production from Apr. 2011

Large Image : G190EG02 V0 AUO 19.0 INCH Life ≥ 50K hours，With LED Driver，Upside I/F，Matte Mass production from Apr. 2011

Product Details:

Place of Origin:	CHINA
Brand Name:	AUO
Certification:	ISO9001
Model Number:	G190EG02 V0

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS

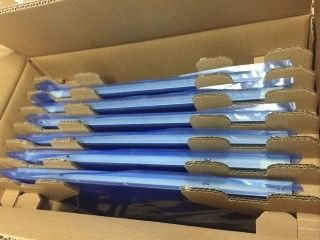

Packaging Details:	STANDARD PACKING
Delivery Time:	1-2DAYS
Payment Terms:	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability:	200PCS

Contact Now

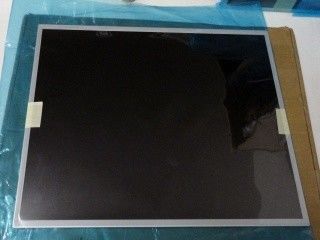

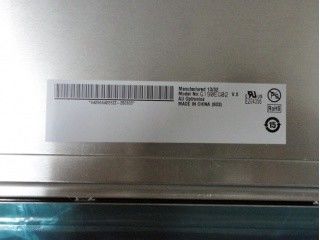

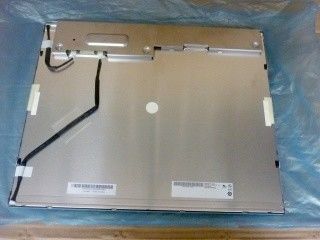

G190EG02 V0 AUO 19.0 INCH Life ≥ 50K hours，With LED Driver，Upside I/F，Matte Mass production from Apr. 2011

Description

MODEL NUMBER:	G190EG02 V0	BRAND:	AUO
SIZE:	19.0	RESOLUTION:	1280(RGB)×1024, SXGA, 86PPI
BRIGHTNESS:	600 Cd/m² (Typ.)	TEMPERATURE RANGE:	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
Highlight:	WLED LVDS AUO LCD Display , CCFL LVDS AUO TFT LCD

AUO G190EG02 V0 Optical Details

Basic Detail :	Luminance 600 cd/m² (Typ.) Contrast Ratio 2000:1 (Typ.) (Transmissive) Good View at Symmetry Response Speed 15/5 (Typ.)(Tr/Td); 8 (Typ.)(G to G) ms Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Operating Mode MVA, Normally Black, Transmissive
Color Performance :	Chromaticity Wx:0.313; Wy:0.329 Support Color 16.7M (8-bit) Color Temperature 6485K White Variation 1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio 69% sRGB 92% coverage Adobe RGB 71% coverage DCI-P3 72% coverage Rec.2020 52% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

AUO G190EG02 V0 Mechanical Details

Pixel Features :	Number of Pixel 1280(RGB)×1024, SXGA Arrangement RGB Vertical Stripe Dot Pitch(W×H) 0.098×0.294 mm Pixel Pitch(W×H) 0.294×0.294 mm [86PPI]
Physical Size :	Active Viewing 376.32(W)×301.056(H) mm Overall Dim. 396(W)×324(H) mm Bezel Opening 380.32(W)×305.06(H) mm Overall Depth 14.3/21.85 (Typ./Max.) mm
Outline Features :	Form Shape Flat Rectangle Orientation Landscape type Aspect Ratio(W:H) 5:4 Shape Style
Fixation :	Side mounting holes (4-M3) on left, right bezel
Other Detail :	Mass 2.00/2.10Kgs (Typ./Max.) Surface Antiglare, Hard coating (3H)

AUO G190EG02 V0 Lightting Details

Lamp Features :	Lamp Type WLED Amount - Position Edge light type (Top and Bottom) Exchange - Lamp Shape - Lamp Life 50K(Min.) (Hours)
Interface Features :	Position ConnectorType
Interface Detail :	Brand Model Pitch Pins Amount Pin Assignment HRS DF14A-15P-1.25H 1.25 mm 15 pins 1 pcs
Backlight Driver :	With LED Driver
Driver Electrical :	Input Voltage 12.0V (Typ.) Input Current 3.96A (Typ.) Consumption 47.5/51W (Typ./Max.)

FAQ:

Q1: What's the quality of your LCD Panel?

A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?

A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?

A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?

A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

G190EG02 V0 AUO 19.0 INCH Life ≥ 50K hours，With LED Driver，Upside I/F，Matte Mass production from Apr. 2011 0
