Product Details:
|

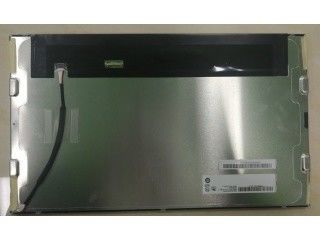

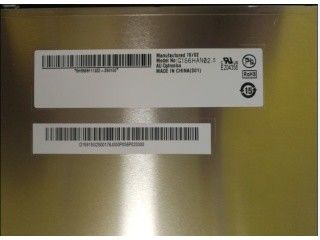

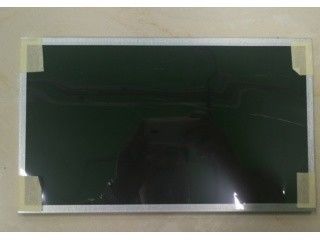

| MODEL NUMBER: | G156HAN02.0 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 15.6 | RESOLUTION: | 1920(RGB)×1080 (FHD) 141PPI |
| BRIGHTNESS: | 600/660g (Typ./Max.) | TEMPERATURE RANGE: | Storage Temp.: -20 ~ 70 °C Operating Temp.: -20 ~ 70 °C |
| Highlight: | WLED LVDS AUO LCD Display,CCFL LVDS AUO TFT LCD |
||
| Basic Information : | Luminance | 500 cd/m² (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 25 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | AHVA, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.2M (6-bit + FRC) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 75% | sRGB | 98% coverage |
| Adobe RGB | 77% coverage | DCI-P3 | 78% coverage | |
| Rec.2020 | 56% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 1920(RGB)×1080 [FHD] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.05975×0.17925 mm | Pixel Pitch(W×H) | 0.17925×0.17925 mm [141PPI] | |
| Physical Size : | Active Viewing | 344.16(W)×193.59(H) mm | Overall Dim. | 363.8(W)×215.9(H) mm |
| Bezel Opening | 347.06(W)×196.49(H) mm | Overall Depth | 8.8±0.5 mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | ||
| Fixation : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Detail : | Mass | 600/660g (Typ./Max.) | Surface | Antiglare, Hard coating (3H) |
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | - | Life | 50K(Min.) (Hours) | |
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Input Current | 0.69A (Typ.) | Input Voltage | 12.0±1.2V | ||
| Consumption | 8.3/10.4W (Typ./Max.) | |||||
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
