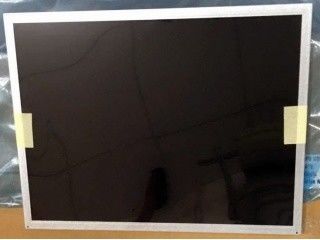

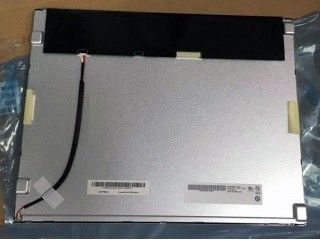

Product Details:
|

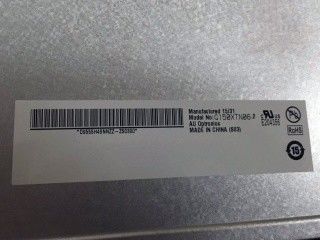

| MODEL NUMBER: | G150XTN06.2 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 15.0 | RESOLUTION: | 1024(RGB)×768 (XGA) 85PPI |
| BRIGHTNESS: | 300 Cd/m² (Typ.) | TEMPERATURE RANGE: | Storage Temp.: -30 ~ 85 °C Operating Temp.: -30 ~ 85 °C |
| High Light: | LVDS Industrial LCD Screen,6 Bit TFT LCD Panel |
||
| Pixel Features : | Resolution | 1024(RGB)×768, XGA | Dot Pitch(mm) | 0.099×0.297 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.297×0.297 (H×V) [85PPI] | |
| Mechanical Size : | Active Area(mm) | 304.128(H) × 228.096(V) | Bezel Area(mm) | 307.4(H) × 231.3(V) |
| Outline Dim.(mm) | 326.5(H) × 253.5(V) | Depth(mm) | 12.0 (Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Mounting : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Spec : | Weight | 1.25Kgs (Typ.) | Treatment | Antiglare |
| Basic Information : | Luminance(cd/m²) | 300 (Typ.) | Contrast Ratio | 700:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/60/80 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | - | Response(ms) | 5.7/2.3 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.311; Y:0.322 | Display Colors | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Temperature | 6658K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 63% | sRGB | 85% coverage |
| Adobe RGB | 65% coverage | DCI-P3 | 66% coverage | |
| Rec.2020 | 47% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Backlight Features: | Shape | - | Type | WLED | Position | Edge light type (Bottom side) |
|---|---|---|---|---|---|---|
| Replacement | No | Quantity | - | Life Time | 70K(Typ.) (Hours) | |
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| E&T | 3808K-F05N-02R | 1 pcs | 5 pins | 1.25 mm | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 12.0±1.2V | Current Supply | 0.45A (Typ.) | ||
| Consumption | 5.4W (Typ.) | |||||
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
