G151EVN01.0 AUO 15.1 INCH Life ≥ 50K hours，With LED Driver，Bar Display，Matte 1/4 Cut of 19"

G151EVN01.0 AUO 15.1 INCH Life ≥ 50K hours，With LED Driver，Bar Display，Matte 1/4 Cut of 19"

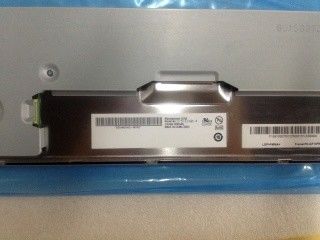

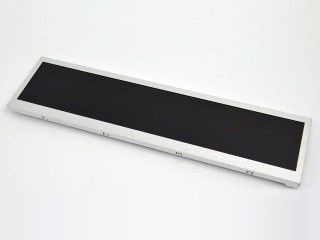

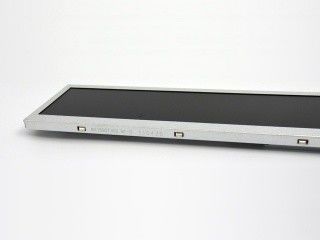

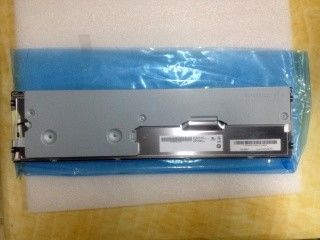

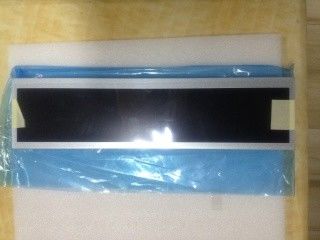

G151EVN01.0 AUO 15.1 INCH Life ≥ 50K hours，With LED Driver，Bar Display，Matte 1/4 Cut of 19" G151EVN01.0 AUO 15.1 INCH Life ≥ 50K hours，With LED Driver，Bar Display，Matte 1/4 Cut of 19" G151EVN01.0 AUO 15.1 INCH Life ≥ 50K hours，With LED Driver，Bar Display，Matte 1/4 Cut of 19" G151EVN01.0 AUO 15.1 INCH Life ≥ 50K hours，With LED Driver，Bar Display，Matte 1/4 Cut of 19" G151EVN01.0 AUO 15.1 INCH Life ≥ 50K hours，With LED Driver，Bar Display，Matte 1/4 Cut of 19"

Large Image :  G151EVN01.0 AUO 15.1 INCH Life ≥ 50K hours，With LED Driver，Bar Display，Matte 1/4 Cut of 19"

Product Details:
Place of Origin: CHINA
Brand Name: AUO
Certification: ISO9001
Model Number: G151EVN01.0
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 200PCS
Contact Now

G151EVN01.0 AUO 15.1 INCH Life ≥ 50K hours，With LED Driver，Bar Display，Matte 1/4 Cut of 19"

Description
MODEL NUMBER: G151EVN01.0 BRAND: AUO
SIZE: 15.1 RESOLUTION: 1280(RGB)×248, 86PPI
BRIGHTNESS: 300 Cd/m² (Typ.) TEMPERATURE RANGE: Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
High Light:

LVDS Industrial LCD Screen

,

6 Bit TFT LCD Panel

AUO G151EVN01.0 Summary

AU Optronics Corp. (hereafter called AUO) G151EVN01.0 is a 15.1 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²).







AUO G151EVN01.0 Mechanical Details

Pixel Features :
Resolution
1280(RGB)×248
Dot Pitch(mm)
0.098×0.294 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.294×0.294 (H×V) [86PPI]
Mechanical Size :
Active Area(mm)
376.32(H) × 72.91(V)
Bezel Area(mm)
380.32(H) × 75.9(V)
Outline Dim.(mm)
396(H) × 100.8(V)
Depth(mm)
17.3
Outline Features :
Form Style
Flat Rectangle
Shape Style

Aspect Ratio
>3:1 (H:V)
Orientation
Landscape type
Mounting :
Side mounting holes
Other Spec :
Weight
700g (Max.)
Treatment
Antiglare, Hard coating (3H)



AUO G151EVN01.0 Optical Details

Basic Information :
Luminance(cd/m²)
300 (Typ.)
Contrast Ratio
2000:1 (Typ.) (Transmissive)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Display Mode
MVA, Normally Black, Transmissive
Best View on
Symmetry
Response(ms)
15/5 (Typ.)(Tr/Td); 8 (Typ.)(G to G)
Color Performance :
White Coordinate
Wx:0.313; Wy:0.329
Display Colors
16.7M (8-bit)
Color Temperature
6485K
White Uniformity
1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
69%
sRGB
92% coverage
Adobe RGB
71% coverage
DCI-P3
72% coverage
Rec.2020
52% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)





AUO G151EVN01.0 Backlight Details

Backlight Features :
Type
WLED
Quantity
-
Position
Edge light type
Replacement
-
Shape
-
Life Time
50K(Min.) (Hours)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
STM
MS24049HJ
1.25 mm
9 pins
1 pcs

Backlight Driver :
With LED Driver
Driver Electrical :
Voltage Supply
12.0±1.2V
Current Supply
0.8A (Typ.)
Consumption
9.6/10.56W (Typ./Max.)

FAQ:

Q1: What's the quality of your LCD Panel?



A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.



Q2: What is your return and refund policy?



A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.



Q3: How long is the lead time?



A: The lead time is about 1-3 working days after receipt of payment.



Q4: How can I get the quotation?



A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
