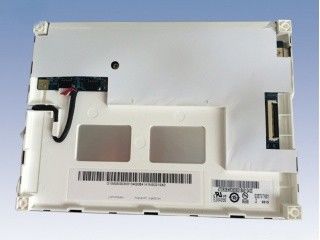

Product Details:
|

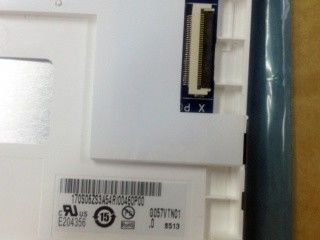

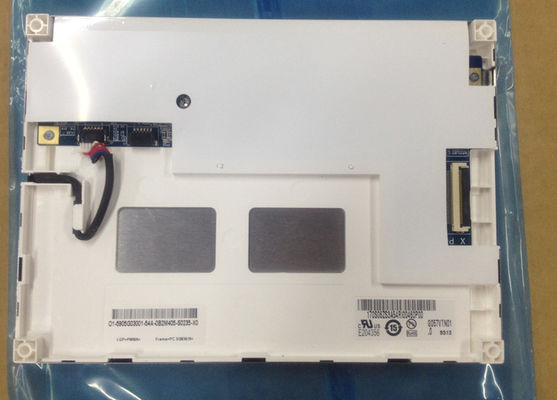

| MODEL NUMBER: | G057VTN01.0 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 5.7 | RESOLUTION: | 640(RGB)×480, VGA, 141PPI |
| BRIGHTNESS: | 530 Cd/m² (Typ.) | TEMPERATURE RANGE: | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -30 ~ 85 °C ; Vibration Level: 6.8G (66.64 M/s²) |
| Viewing Angle: | 80/80/70/70 (Typ.)(CR≥10) | Bezel Opening: | 118.2(W)×89.4(H) Mm |
| Highlight: | LVDS Industrial LCD Screen,6 Bit TFT LCD Panel |
||
| Screen Size : | 5.7" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 640(RGB)×480, VGA | RGB Vertical Stripe | 0.060×0.180 mm | 0.180×0.180 mm [141PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 115.2×86.4 mm | 118.2×89.4 mm | 144×104.6 mm | 12.3/12.8 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 150/165g (Typ./Max.) | - | Antiglare, Hard coating (3H) | ||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 530 cd/m² (Typ.) | TN, Normally White, Transmissive | 800:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 12 o'clock | 80/80/70/70 (Typ.)(CR≥10) | 15/10 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6485K | 262K (6-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 47% | 66% | 50% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 49% | 35% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 50K(Min.) | - | - | No | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 32/40V (Typ./Max.) | 80mA (Typ.) | 2.56/3.2W (Typ./Max.) | ||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| With LED Driver | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JST | SM06B-SRKS-G-TB(HF) | 1 pcs | 6 pins | 1.0 mm | ||
| WLED Driver Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 9.0/12.0/20.0V (Min./Typ./Max.) | 0.26/0.29A (Typ./Max.) | 3.12/3.43W (Typ./ | ||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 115.2(W)×86.4(H) mm, outline size of 144(W)×104.6(H)×12.8(D) mm, viewing area size of 118.2(W)×89.4(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 150/165g (Typ./Max.). As a TN, Normally White, Transmissive LCM product, G057VTN01.0 can provides 530 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/70/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 15/10 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 47% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. G057VTN01.0 utilizes CMOS (1 ch, 6-bit) as it's signal inputting systerm, which connected by 33 pins Connector with power supply voltage of 3.3V (Typ.)
