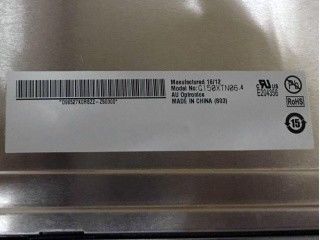

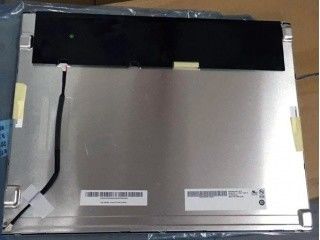

Product Details:
|
| MODEL NUMBER: | G150XTN06.4 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 15.0 | RESOLUTION: | 1024(RGB)×768, XGA, 85PPI |
| BRIGHTNESS: | 400 Cd/m² (Typ.) | TEMPERATURE RANGE: | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -30 ~ 85 °C |
| Viewing Angle: | 80/80/70/80 (Typ.)(CR≥10) | Bezel Opening: | 307.4(W)×231.3(H) Mm |
| Highlight: | LVDS Industrial LCD Screen,6 Bit TFT LCD Panel |
||
| Basic Information : | Luminance | 400 cd/m² (Typ.) | Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | - | Response Speed | 5.7/2.3 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 80/80/70/80 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.311; Wy:0.322 | Support Color | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Temperature | 6658K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 63% | sRGB | 85% coverage |
| Adobe RGB | 65% coverage | DCI-P3 | 66% coverage | |
| Rec.2020 | 47% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 1024(RGB)×768 [XGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.099×0.297 mm | Pixel Pitch(W×H) | 0.297×0.297 mm [85PPI] | |
| Physical Size : | Active Viewing | 304.128(W)×228.096(H) mm | Overall Dim. | 326.5(W)×253.5(H) mm |
| Bezel Opening | 307.4(W)×231.3(H) mm | Overall Depth | 12.0 (Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||
| Fixation : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Detail : | Mass | 1.00Kgs (Max.) | Surface | Antiglare, Hard coating (3H) |
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type (Bottom side) |
|---|---|---|---|---|---|---|
| Exchange | Replaceable | Amount | - | Life | 70K(Typ.) (Hours) | |
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| E&T | 3808K-F05N-12R | 1 pcs | 1.25 mm | 5 pins | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Input Current | 0.62/0.84A (Typ./Max.) | Input Voltage | 12.0V (Typ.) | ||
| Consumption | 7.43/10.13W (Typ./Max.) | |||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 304.128(W)×228.096(H) mm, outline size of 326.5(W)×253.5(H)×12(D) mm, viewing area size of 307.4(W)×231.3(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 1.00Kgs (Max.). As a TN, Normally White, Transmissive LCM product, G150XTN06.4 can provides 400 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/70/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 5.7/2.3 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 262K/16.2M colors, also with performance of color gamut 63% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 50K hours, With LED Driver. G150XTN06.4 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.)
