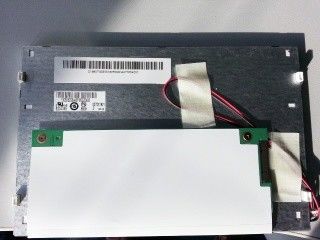

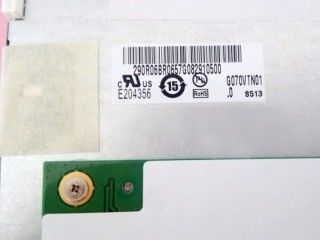

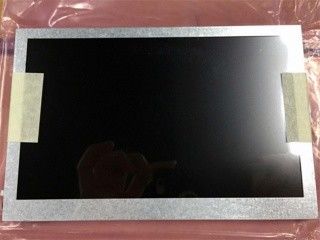

Product Details:
|
| MODEL NUMBER: | G070VTN01.0 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 7.0 | RESOLUTION: | 800×480(RGB) (WVGA) 133PPI |
| BRIGHTNESS: | 300 Cd/m² (Typ.) | TEMPERATURE RANGE: | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| Viewing Angle: | 65/65/50/60 (Typ.)(CR≥10 | Bezel Opening: | 155.2(W)×92.84(H) Mm |
| High Light: | LVDS Industrial LCD Screen,6 Bit TFT LCD Panel |
||
| Panel Size : | 7.0 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 800×480(RGB), WVGA | RGB Horizontal Stripe | 0.1905×0.0635 mm | 0.1905×0.1905 mm [133PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 152.4×91.44 mm | 155.2×92.84 mm | 170×111 mm | 8.0±0.3 mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 15:9 (W : H) | Landscape type | ||
| Fixation : | Side mounting holes (4-M2) on left, right bezel | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 180g | Antiglare, Hard coating (3H) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 300 cd/m² (Typ.) | TN, Normally White, Transmissive | 500:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 65/65/50/60 (Typ.)(CR≥10) | 6 o'clock | 12/18 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6638K | 262K/16.2M (6-bit / 6-bit + FRC) | X:0.310; Y:0.330 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 52% | 73% | 55% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 54% | 39% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type (Bottom side) | Array | 3S7P | 30K(Min.) | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 140mA (Typ.) | 9.6/10.5V (Typ./Max.) | 1.218/1.344/1.47W (Min./Typ./Max.) | ||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | Connector | No | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| E&T | H201K-P02N-02B | 1 pcs | 1.25 mm | 2 pins | BLE-2PINS-AC | |
| Basic Info : | Panel Brand | Panel Model | G070VTN01.0 | |
|---|---|---|---|---|
| Diagonal Size | 7.0" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | -20 ~ 70 °C | Storage Temp. | -30 ~ 80 °C |
| RoHS State | Vibration Rating | 1.5G (14.7 m/s²) |
| Frame Frequency : | 60Hz |
|---|---|
| Reverse Scan : | Yes (L/R) |
| Power Consumption : | 1.80W (Typ.) |
| Back-light Features: | Lamp Shape | Array | Lamp Type | WLED | Life Time | 30K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 3S7P | Position | Edge light type (Bottom side) | |
| Lamp Electrical : | Voltage Input | 9.6/10.5V (Typ./Max.) | Current Input | 140mA (Typ.) | ||
| Consumption | 1.218/1.344/1.47W (Min./Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | - | Lamp Driver | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| E&T | H201K-P02N-02B | 1.25 mm | 2 pins | 1 pcs | BLE-2PINS-AC | |
whose pixels are arranged in RGB Horizontal Stripe. As for mechanical detail, it features active area of 152.4(W)×91.44(H) mm, outline size of 170(W)×111(H)×8.3(D) mm, viewing area size of 155.2(W)×92.84(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 180g. As a TN, Normally White, Transmissive LCM product, G070VTN01.0 can provides 300 cd/m² display brightness 500:1 transimissive contrast ratio, 65/65/50/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 12/18 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 262K/16.2M colors, also with performance of color gamut 50% (NTSC). This product adopted 3S7P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 30K hours, external backlight driver is additionally needed. G070VTN01.0 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.)
