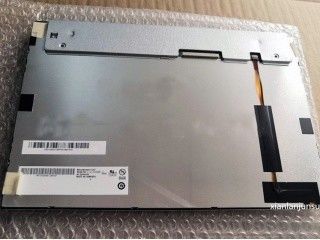

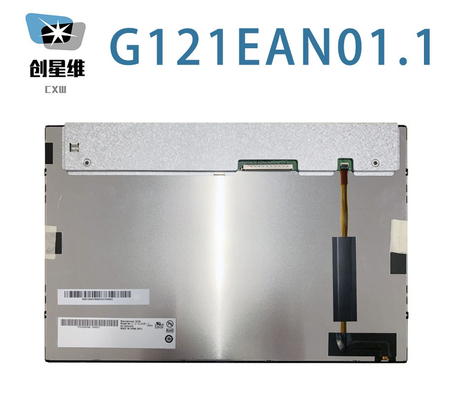

Product Details:
|
| MODEL NUMBER: | G121EAN01.1 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 12.1inch | RESOLUTION: | 1280(RGB)×800 [WXGA] 124PPI |
| BRIGHTNESS: | 400 Cd/m² (Typ.) | TEMPERATURE RANGE: | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -30 ~ 85 °C |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Bezel Opening: | 264.22(W)×168.12(H) Mm |
| Highlight: | LVDS Industrial LCD Screen,6 Bit TFT LCD Panel |
||
| Basic Information : | Brand | Model | G121EAN01.1 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For |
|
|
| Screen Size | 12.1" | Alias | - | |
| Environment : | Storage Temp. | -30 ~~ 85 °C | Operating Temp. | -30 ~~ 85 °C |
| RoHS | Vibration | 1.5G (14.7 m/s²) |
| Pixel Features : | Resolution | 1280(RGB)×800, WXGA | Dot Pitch(mm) | 0.068×0.204 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.204×0.204 (H×V) [124PPI] | |
| Mechanical Size : | Active Area(mm) | 261.12(H) × 163.2(V) | Bezel Area(mm) | 264.22(H) × 168.12(V) |
| Outline Dim.(mm) | 278(H) × 184(V) | Depth(mm) | 6.95/9.64 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:10 (H:V) | Orientation | Landscape type | |
| Mounting : | Side mounting holes (4-M2) on left, right bezel | |||

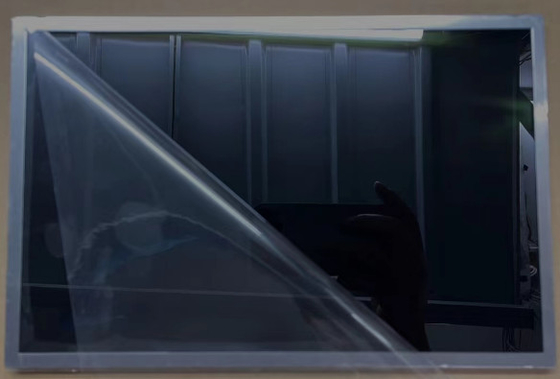

| Other Spec : | Weight | 480g (Max.) | Treatment | Antiglare, Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 400 (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | AHVA, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 25 (Typ.)(Tr+Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(5 points) | |
| 1931 Color Gamut : | NTSC Ratio | 73% | sRGB | 99% coverage |
| Adobe RGB | 75% coverage | DCI-P3 | 75% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Frame Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Power Consumption : | 6.06W |
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 500mA (Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 1.65W (Max.) | |||||
| Signal Type : | LVDS (1 ch, 6/8-bit) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| STARCONN | 093G30-B0001A-1 | 1 pcs | 30 pins | 1.0 mm | LVDS-30P1C8B-105A | |
| Backlight Features: | Shape | - | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | - | Life Time | 50K(Min.) (Hours) | |
| Interface Features : | Position | - | Type | Included in signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 10/12/15V (Min./Typ./Max.) | Current Supply | 0.37/0.41A (Typ./Max.) | ||
| Consumption | 4.41/4.83W (Typ./Max.) | |||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 261.12(W)×163.2(H) mm, outline size of 278(W)×184(H)×9.64(D) mm, viewing area size of 264.22(W)×168.12(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 480g (Max.). As a AHVA, Normally Black, Transmissive LCM product, G121EAN01.1 can provides 400 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 262K/16.2M colors, also with performance of color gamut 99% (sRGB). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. G121EAN01.1 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.)
