B156HAN13.0 AUO 15.6INCH 1920×1080RGB 250CD/M2 WLED eDP Operating Temperature: 0 ~ 50 °C INDUSTRIAL LCD DISPLAY

B156HAN13.0 AUO	15.6INCH 1920×1080RGB 250CD/M2 WLED eDP Operating Temperature: 0 ~ 50 °C INDUSTRIAL LCD DISPLAY
B156HAN13.0 AUO	15.6INCH 1920×1080RGB 250CD/M2 WLED eDP Operating Temperature: 0 ~ 50 °C INDUSTRIAL LCD DISPLAY B156HAN13.0 AUO	15.6INCH 1920×1080RGB 250CD/M2 WLED eDP Operating Temperature: 0 ~ 50 °C INDUSTRIAL LCD DISPLAY

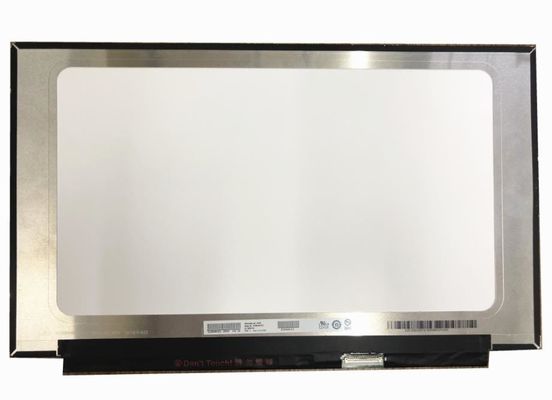

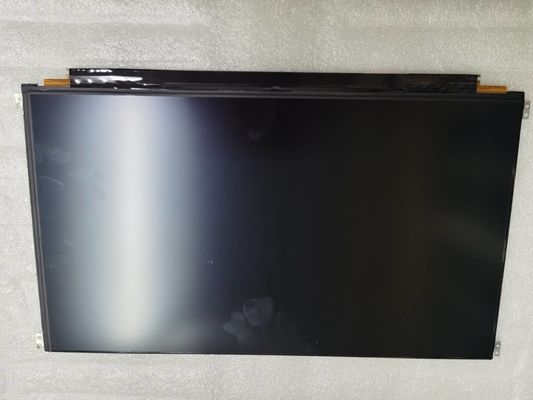

Large Image :  B156HAN13.0 AUO 15.6INCH 1920×1080RGB 250CD/M2 WLED eDP Operating Temperature: 0 ~ 50 °C INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: CHINA
Brand Name: AUO
Certification: ISO9001
Model Number: B156HAN13.0
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD75
Packaging Details: STANDARD PACKING
Delivery Time: 1-2DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 300PCS

B156HAN13.0 AUO 15.6INCH 1920×1080RGB 250CD/M2 WLED eDP Operating Temperature: 0 ~ 50 °C INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: B156HAN13.0 BRAND: AUO
SIZE: 15.6INCH RESOLUTION: 1920×1080RGB
BRIGHTNESS: 250CD/M2 TEMPERATURE RANGE: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
High Light:

LVDS Industrial LCD Screen

,

6 Bit TFT LCD Panel

AUO B156HAN13.0 Application Details

Basic Detail : Manufacturer B156HAN13.0 AUO	15.6INCH 1920×1080RGB 250CD/M2 WLED eDP Operating Temperature: 0 ~ 50 °C INDUSTRIAL LCD DISPLAY 0 Model Name B156HAN13.0
Panel Type a-Si TFT-LCD , LCM Another Name AUOD0ED
Panel Size 15.6 inch Designed For
  • B156HAN13.0 AUO	15.6INCH 1920×1080RGB 250CD/M2 WLED eDP Operating Temperature: 0 ~ 50 °C INDUSTRIAL LCD DISPLAY 1
  • B156HAN13.0 AUO	15.6INCH 1920×1080RGB 250CD/M2 WLED eDP Operating Temperature: 0 ~ 50 °C INDUSTRIAL LCD DISPLAY 2
Maximum Ratings : OP Temperature 0 ~ 50 °C ST Temperature -20 ~ 60 °C
Vibration Level 1.5G (14.7 m/s²) RoHS B156HAN13.0 AUO	15.6INCH 1920×1080RGB 250CD/M2 WLED eDP Operating Temperature: 0 ~ 50 °C INDUSTRIAL LCD DISPLAY 3



AUO B156HAN13.0 Optical Details

Basic Information : Luminance 250 cd/m² (Typ.) Contrast Ratio 800 : 1 (Typ.) (Transmissive)
Good View at Symmetry Response Speed 25 (Typ.)(Tr+Td) (ms)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) B156HAN13.0 AUO	15.6INCH 1920×1080RGB 250CD/M2 WLED eDP Operating Temperature: 0 ~ 50 °C INDUSTRIAL LCD DISPLAY 4 Operating Mode AHVA, Normally Black, Transmissive
Color Performance : Chromaticity Wx:0.313; Wy:0.329 Support Color 16.7M (8-bit)
Color Temperature 6485K White Uniformity 1.25/1.60 (Max.)(5/13 points) B156HAN13.0 AUO	15.6INCH 1920×1080RGB 250CD/M2 WLED eDP Operating Temperature: 0 ~ 50 °C INDUSTRIAL LCD DISPLAY 5
1931 Color Gamlt : NTSC Ratio 44% sRGB 61% coverage
Adobe RGB 46% coverage DCI-P3 46% coverage
Rec.2020 33% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



AUO B156HAN13.0 Mechanical Details

Pixel Features : Number of Pixel 1920(RGB)×1080 [FHD] Arrangement RGB Vertical Stripe
Dot Pitch(W×H) 0.05975×0.17925 mm Pixel Pitch(W×H) 0.17925×0.17925 mm [141PPI]
Physical Size : Active Viewing 344.16(W)×193.59(H) mm Overall Dim. 350.66(W)×216.15(H) mm
Bezel Opening - Overall Depth 2.6/3.0 (Typ./Max.) mm
Outline Features : Form Shape Flat Rectangle Orientation Landscape type
Aspect Ratio(W:H) 16:9 Shape Style Slim (PCBA Flat, T≤3.2mm)
Fixation : Without
Other Detail : Mass 370g (Max.) Surface Antiglare



AUO B156HAN13.0 Electronics Details

Refresh Rate : 120Hz Reverse Scan : No
Power Consumption : 5.25W (Typ.)



AUO B156HAN13.0 Interface Details

Signal Electrical : Input Current 667mA (Max.) Input Voltage 3.3V (Typ.)
Consumption 1.3/2.0W (Typ./Max.) Signal Interface eDP (4 Lanes), eDP1.4
Interface Features : Position Right of Board Physical Type Connector
Signal Interface : Brand Model Amount Pin Pitch Pin Amount Pin Assignment B156HAN13.0 AUO	15.6INCH 1920×1080RGB 250CD/M2 WLED eDP Operating Temperature: 0 ~ 50 °C INDUSTRIAL LCD DISPLAY 8
I-PEX 20765-040E-11A 1 pcs 0.5 mm 40 pins



AUO B156HAN13.0 Lightting Details

Lamp Features: Lamp Shape - Lamp Type WLED Position Edge light type
Exchange - Amount - Life 15K(Min.) (Hours)
Interface Features : Position - Physical Type Included in panel signal interface
Backlight Driver : With LED Driver
Driver Electrical : Input Current - Input Voltage 5.0/12.0/21.0V (Min./Typ./Max.)
Consumption 3.25W (Max.)
