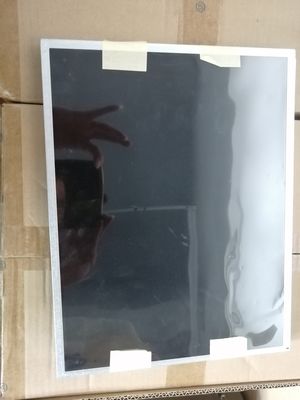

Product Details:
|
| MODEL NUMBER: | G150XTN06.1 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 15.0inch | RESOLUTION: | 1024(RGB)×768, XGA, 85PPI |
| BRIGHTNESS: | 500 Cd/m² (Typ.) | TEMPERATURE RANGE: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -20 ~ 70 °C |
| Highlight: | LVDS Industrial LCD Screen,6 Bit TFT LCD Panel |
||
| Basic Detail : | Manufacturer | Model Name | G150XTN06.1 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 15.0 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | -20 ~ 70 °C | ST Temperature | -20 ~ 70 °C |
| Vibration Level | 1.5G (14.7 m/s²) |
| Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) | ||
| 1024(RGB)×768, XGA | RGB Vertical Stripe | 0.099×0.297 mm | 0.297×0.297 mm [85PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 304.128×228.096 mm | 310.18×234.4 mm | 326.5×253.5 mm | 6.3±0.5 mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 560g (Typ.) | - | Antiglare | ||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 500 cd/m² (Typ.) | TN, Normally White, Transmissive | 800:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| - | 80/80/70/80 (Typ.)(CR≥10) | 5.7/2.3 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6485K | 262K/16.2M (6-bit / 6-bit + FRC) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 63% | 85% | 65% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 65% | 47% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 450/750mA (Typ./Max.) | 1.49/2.48W (Typ./Max.) | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| LVDS (1 ch, 6/8-bit) | Connector | |||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| STM | MSCKT2407P30 | 1 pcs | 30 pins | 1.0 mm | ||
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
