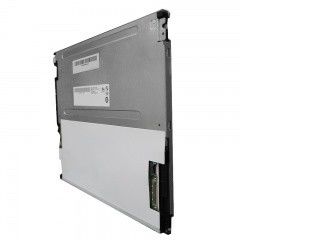

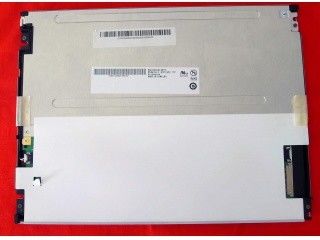

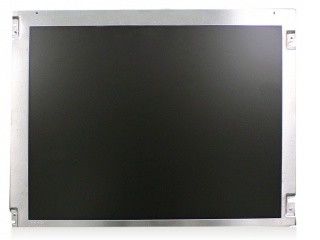

Product Details:
|
| MODEL NUMBER: | G104SN02 V2 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 10.4inch | RESOLUTION: | 800(RGB)×600 (SVGA) 96PPI |
| BRIGHTNESS: | 400 (Typ.)(cd/m²) | TEMPERATURE RANGE: | Storage Temp.: -30 ~ 85 °C Operating Temp.: -30 ~ 85 °C |
| Viewing Angle: | 80/80/60/80 (Typ.)(CR≥10) | ||
| High Light: | LVDS Industrial LCD Screen,6 Bit TFT LCD Panel |
||
| Basic Detail : | Manufacturer | Model Name | G104SN02 V2 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | G104SN02 V.2 | |
| Panel Size | 10.4 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | -30 ~ 85 °C | ST Temperature | -30 ~ 85 °C |
| Vibration Level | 1.5G (14.7 m/s²) |
| Basic Information : | Luminance | 400 cd/m² (Typ.) | Contrast Ratio | 700 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | - | Response Speed | 20/10 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 80/80/60/80 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.330 | Support Color | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Temperature | 6638K | White Uniformity | 1.33 (Max.)(5 points) | |
| 1931 Color Gamut : | NTSC Ratio | 42% | sRGB | 59% coverage |
| Adobe RGB | 44% coverage | DCI-P3 | 44% coverage | |
| Rec.2020 | 32% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 800(RGB)×600 [SVGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.088×0.264 mm | Pixel Pitch(W×H) | 0.264×0.264 mm [96PPI] | |
| Physical Size : | Active Viewing | 211.2(W)×158.4(H) mm | Overall Dim. | 243(W)×184(H) mm |
| Bezel Opening | 214.8(W)×162.7(H) mm | Overall Depth | 8.0/8.5 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||
| Fixation : | Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel | |||
| Other Detail : | Mass | 360g (Typ.) | Surface | Antiglare, Hard coating (3H) |
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (180°) |
| Power Consumption : | 4.8W (Typ.) |
| Signal Electrical : | Input Current | 280mA (Typ.) | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 0.924W (Typ.) | Signal Interface | LVDS (1 ch, 6/8-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| STM | MSB24013P20HA | 1 pcs | 1.0 mm | 20 pins | LVDS-20P1C8B-080A | |
| Lamp Features: | Lamp Shape | 2 strings | Lamp Type | WLED | Position | Edge light type (Bottom side) |
|---|---|---|---|---|---|---|
| Exchange | Replaceable | Amount | 7S2P | Life | 50K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 80mA (Typ.) | Input Voltage | 22.4/25.55V (Typ./Max.) | ||
| Consumption | 3.6W (Typ.) | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| E&T | 3808K-F05N-02R | 1 pcs | 1.25 mm | 5 pins | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Input Current | 0.32A (Typ.) | Input Voltage | 12.0V (Typ.) | ||
| Consumption | 3.8W (Typ.) | |||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 211.2(W)×158.4(H) mm, outline size of 243(W)×184(H)×8.5(D) mm, viewing area size of 214.8(W)×162.7(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 360g (Typ.). As a TN, Normally White, Transmissive LCM product, G104SN02 V2 can provides 400 cd/m² display brightness 700:1 transimissive contrast ratio, 80/80/60/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 20/10 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 262K/16.2M colors, also with performance of color gamut 45% (NTSC). This product adopted 7S2P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 50K hours, With LED Driver. G104SN02 V2 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.).
