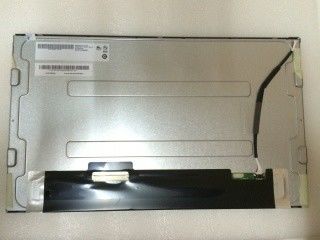

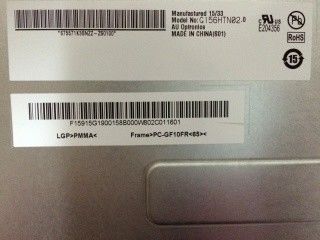

Product Details:
|
| MODEL NUMBER: | G156HTN02.0 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 15.6 Inch | RESOLUTION: | 1920(RGB)×1080 [FHD] 141PPI |
| BRIGHTNESS: | 500 Cd/m² (Typ.) | TEMPERATURE RANGE: | Operating Temperature: -10 ~ 70 °C ; Storage Temperature: -20 ~ 70 °C |
| Viewing Angle: | 80/80/70/70 (Typ.)(CR≥10) | ||
| High Light: | LVDS Industrial LCD Screen,6 Bit TFT LCD Panel |
||
| Basic Information : | Luminance | 400 cd/m² (Typ.) | Contrast Ratio | 700 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | - | Response Speed | 8 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 80/80/70/70 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.43/1.61 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 72% | sRGB | 92% coverage |
| Adobe RGB | 71% coverage | DCI-P3 | 74% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 1920(RGB)×1080 [FHD] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.05975×0.17925 mm | Pixel Pitch(W×H) | 0.17925×0.17925 mm [141PPI] | |
| Physical Size : | Active Viewing | 344.16(W)×193.59(H) mm | Overall Dim. | 363.8(W)×215.9(H) mm |
| Bezel Opening | 347.06(W)×196.49(H) mm | Overall Depth | 9.3±0.5 mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | ||
| Fixation : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Detail : | Mass | 0.94/1.10Kgs (Typ./Max.) | Surface | Antiglare, Hard coating (3H) |
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | - | Life | 50K(Typ.) (Hours) | |
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| E&T | 3710K-Q10N-01R | 1 pcs | 1.0 mm | 10 pins | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Input Current | 0.73/0.88A (Typ./Max.) | Input Voltage | 12.0±1.2V | ||
| Consumption | 10.5W (Max.) | |||||
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| G156HTN02.0 | a-Si TFT-LCD , LCM | - | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| -10 ~ 70 °C | -20 ~ 70 °C |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 344.16(W)×193.59(H) mm, outline size of 363.8(W)×215.9(H)×9.8(D) mm, viewing area size of 347.06(W)×196.49(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 0.94/1.10Kgs (Typ./Max.). As a TN, Normally White, Transmissive LCM product, G156HTN02.0 can provides 400 cd/m² display brightness 700:1 transimissive contrast ratio, 80/80/70/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 8 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. G156HTN02.0 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.).
