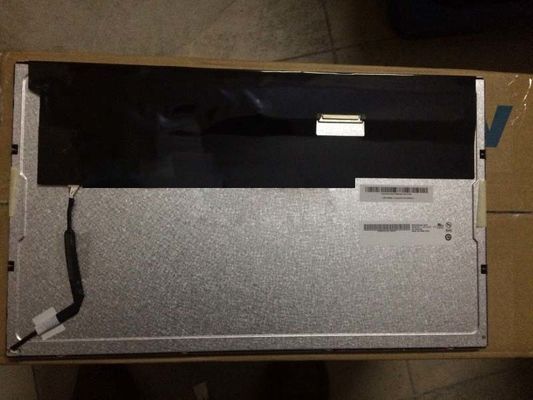

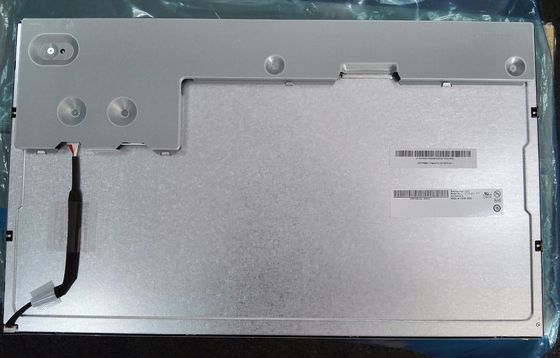

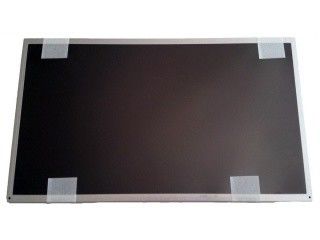

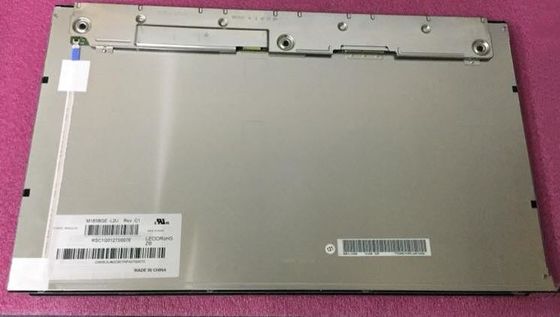

Product Details:
|
| MODEL NUMBER: | G185XW01 V1 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 18.5INCH | RESOLUTION: | 1366(RGB)×768, WXGA, 84PPI |
| BRIGHTNESS: | 300 Cd/m² (Typ.) | TEMPERATURE RANGE: | Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -20 ~ 60 °C |
| Viewing Angle: | 85/85/80/80 (Typ.)(CR≥10 | Bezel Opening: | 413.4(W)×234.0(H) Mm |
| Highlight: | LVDS Industrial LCD Screen,6 Bit TFT LCD Panel |
||
| Screen Size : | 18.5" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1366(RGB)×768, WXGA | RGB Vertical Stripe | 0.100×0.300 mm | 0.300×0.300 mm [84PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 409.8×230.4 mm | 413.4×234.0 mm | 430.4×254.6 mm | 16.4±0.5 mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 16:9 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 1.82Kgs (Max.) | - | Antiglare, Hard coating (3H) | ||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 300 cd/m² (Typ.) | TN, Normally White, Transmissive | 1000:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| - | 85/85/80/80 (Typ.)(CR≥10) | 3.5/1.5 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6485K | 16.7M (6-bit + Hi-FRC) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 66% | 88% | 68% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 68% | 49% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 5.0V (Typ.) | 0.9/1.1A (Typ./Max.) | 4.5/5.5W (Typ./Max.) | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| LVDS (1 ch, 8-bit) | Connector | |||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JAE | FI-XB30SSRL-HF16 | 1 pcs | 30 pins | 1.0 mm | LVDS-30P1C8B-170A | |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 409.8(W)×230.4(H) mm, outline size of 430.4(W)×254.6(H)×16.9(D) mm, viewing area size of 413.4(W)×234.0(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 1.82Kgs (Max.). As a TN, Normally White, Transmissive LCM product, G185XW01 V1 can provides 300 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 3.5/1.5 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 66% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 50K hours, With LED Driver. G185XW01 V1 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.)
