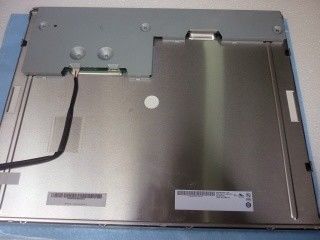

Product Details:
|

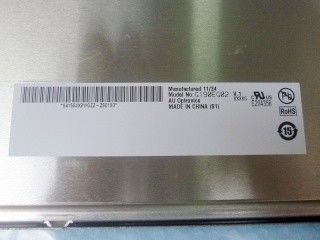

| Size: | 19.0 | Resolution: | 1280(RGB)×1024 (SXGA) 86PPI |
|---|---|---|---|
| Brightness: | 300 Cd/m² (Typ.) | Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) |
| Display Colors: | 16.7M 70% NTSC | Environment: | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 60 °C |
| Bezel Opening: | 380.32(W)×305.06(H) Mm | Outline Size: | 396(W)×324(H) ×18.9(D) Mm |
| High Light: | LVDS Industrial LCD Screen,6 Bit TFT LCD Panel |
||
| Screen Size : | 19.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1280(RGB)×1024, SXGA | RGB Vertical Stripe | 0.098×0.294 mm | 0.294×0.294 mm [86PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 376.32×301.056 mm | 380.32×305.06 mm | 396×324 mm | 18.9 (Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 5:4 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 1.75Kgs (Typ.) | - | Antiglare | ||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 300 cd/m² (Typ.) | MVA, Normally Black, Transmissive | 2000:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | 89/89/89/89 (Typ.)(CR≥10) | 15/5 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6485K | 16.7M (8-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 69% | 92% | 71% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 72% | 52% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type (Bottom side) | 50K(Min.) | - | - | - | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 110mA (Typ.) | 20.2/22.6W (Typ./Max.) | |||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| With LED Driver | Connector | |||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| STM | MS24019RHD | 1 pcs | 9 pins | 1.25 mm | ||
| WLED Driver Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 12.0V (Typ.) | 1.87/2.1A (Typ./Max.) | 22.4/25.1W (Typ./Max.) | ||||
| Basic Detail : | Manufacturer | Model Name | G190EG02 V1 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | G190EG02 V.1 | |
| Panel Size | 19.0 inch | Designed For |
|
|
| Maximum Ratings : | OP Temperature | 0 ~ 60 °C | ST Temperature | -20 ~ 60 °C |
| Vibration Level | 1.5G (14.7 m/s²) | RoHS |
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Power Consumption : | 30.6W |
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type (Bottom side) |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | - | Life | 50K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 110mA (Typ.) | Input Voltage | |||
| Consumption | 20.2/22.6W (Typ./Max.) | |||||
| Interface Features : | Position | Physical Type | Connector | |||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| STM | MS24019RHD | 1 pcs | 1.25 mm | 9 pins | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Input Current | 1.87/2.1A (Typ./Max.) | Input Voltage | 12.0V (Typ.) | ||
| Consumption | 22.4/25.1W (Typ./Max.) | |||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 376.32(W)×301.056(H) mm, outline size of 396(W)×324(H)×18.9(D) mm, viewing area size of 380.32(W)×305.06(H) mm, with surface treament of Antiglare, net weight of 1.75Kgs (Typ.). As a MVA, Normally Black, Transmissive LCM product, G190EG02 V1 can provides 300 cd/m² display brightness 2000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 15/5 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 70% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 50K hours, With LED Driver. G190EG02 V1 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.).
