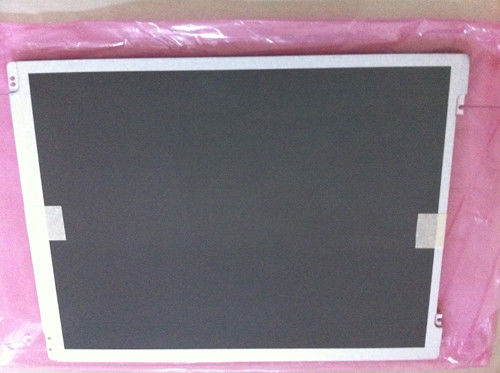

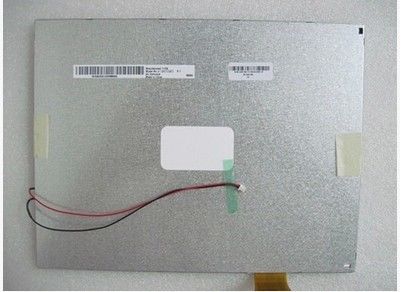

Product Details:
|
| Size: | 10.4 | Resolution: | 800(RGB)×600, SVGA, 96PPI |
|---|---|---|---|
| Brightness: | 350 Cd/m² (Typ.) | Viewing Angle: | 75/75/50/60 (Typ.)(CR≥10) |
| Display Colors: | 262K/16.2M 50% NTSC | Environment: | Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -20 ~ 70 °C |
| High Light: | LVDS Industrial LCD Screen,6 Bit TFT LCD Panel |
||
| Basic Information : | Brand | Model | A104SN03 V1 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For |
|
|
| Screen Size | 10.4" | Alias | A104SN03 V.1 | |
| Environment : | Storage Temp. | -20 ~~ 70 °C | Operating Temp. | -10 ~~ 60 °C |
| Pixel Features : | Resolution | 800(RGB)×600, SVGA | Dot Pitch(mm) | 0.088×0.264 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.264×0.264 (H×V) [96PPI] | |
| Mechanical Size : | Active Area(mm) | 211.2(H) × 158.4(V) | Bezel Area(mm) | 213.2(H) × 160.4(V) |
| Outline Dim.(mm) | 228.4(H) × 175.4(V) | Depth(mm) | 6.2±0.3 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Mounting : | Without | |||
| Other Spec : | Weight | 400±20g | Treatment | Antiglare, Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 350 (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 75/75/50/60 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | 6 o'clock | Response(ms) | 30 (Typ.)(Tr+Td) | |
| Color Performance : | White Coordinate | X:0.330; Y:0.350 | Display Colors | 262K/16.7M (6-bit / 6-bit + Dithering) |
| Color Temperature | 5598K | White Uniformity | 1.25/1.33 (Typ./max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 52% | sRGB | 68% coverage |
| Adobe RGB | 53% coverage | DCI-P3 | 53% coverage | |
| Rec.2020 | 39% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Frame Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Power Consumption : | 3.4W (Max.) |
| Time Controller (T-CON) : | Embedded T-CON |
| Signal Electrical : | Voltage Supply | 3.3/11/15/-7V (Typ.)(VCC/AVDD/VGH/VGL) | Current Supply | 10/24/0.4/-0.4mA (Typ.)(ICC/IDD/IGH/IGL) | ||
|---|---|---|---|---|---|---|
| Consumption | 0.43W (Typ.) | |||||
| Signal Type : | TTL (1 ch, 6/8-bit) + SPI | Signal Voltage | GND≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | |||
| Interface Features : | Position | - | Type | FPC | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| 1 pcs | 60 pins | 0.5 mm | ||||
| Backlight Features: | Shape | Array | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | No | Quantity | 3S12P | Life Time | 10K(Min.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 8.8/10.0/10.7V (Min./Typ./Max.) | Current Supply | 300mA (Typ.) | ||
| Consumption | 3.0/3.21W (Typ./Max.) | |||||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JOIN TEK | JT1025-1021 | 1 pcs | 2 pins | BLE-2PINS-AC | ||
| Backlight Driver : | No | |||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 211.2(W)×158.4(H) mm, outline size of 228.4(W)×175.4(H)×6.5(D) mm, viewing area size of 213.2(W)×160.4(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 400±20g. As a TN, Normally White, Transmissive LCM product, A104SN03 V1 can provides 350 cd/m² display brightness 500:1 transimissive contrast ratio, 75/75/50/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Dithering gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 3S12P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, external backlight driver is additionally needed. A104SN03 V1 utilizes TTL (1 ch, 6/8-bit) + SPI as it's signal inputting systerm, which connected by 60 pins FPC with power supply voltage of 3.3/11/15/-7V (Typ.)(VCC/AVDD/VGH/VGL)
