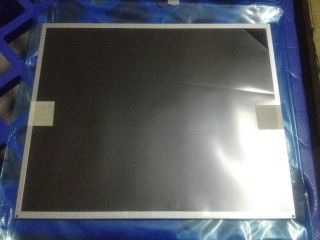

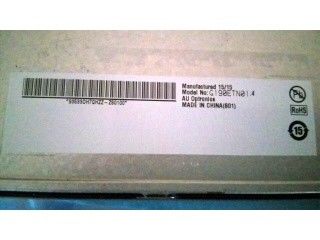

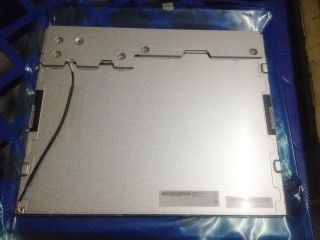

Product Details:
|
| Resolution: | 1280(RGB)×1024 (SXGA) 86PPI | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 19.0 | Display Area: | 376.32 × 301.056 (H×V) |
| Panel Weight: | 450 Cd/m² (Typ.) | TEMPERATURE RANGE: | Storage Temp.: -30 ~ 85 °C Operating Temp.: -30 ~ 85 °C |
| Viewing Angle: | 85/85/80/80 (Typ.)(CR≥10) | Outline Size: | 396(W)×324(H)×13.38(D) Mm |
| High Light: | LVDS Industrial LCD Screen,6 Bit TFT LCD Panel |
||
| Panel Size : | 19.0 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1280(RGB)×1024, SXGA | RGB Vertical Stripe | 0.098×0.294 mm | 0.294×0.294 mm [86PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 376.32×301.056 mm | 379.72×304.46 mm | 396×324 mm | 13.38 (Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 5:4 (W : H) | Landscape type | ||
| Fixation : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 1.80Kgs (Typ.) | Antiglare, Hard coating (3H) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 450 cd/m² (Typ.) | TN, Normally White, Transmissive | 1000:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 85/85/80/80 (Typ.)(CR≥10) | - | 7/3 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 16.7M (6-bit + Hi-FRC) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 90% | 99% | 80% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 90% | 66% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type (Bottom side) | 4 strings | 4 strings | 50K(Typ.) | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 100mA (Typ.) | 38.4±4.8V | |||||
| Interface Features : | Position | Type | WLED Driver | |||
| Connector | With LED Driver | |||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| SM08B-GHH(HF) | 1 pcs | 8 pins | ||||
| Driver Electrical : | Current Input | Voltage Input | Consumption | |||
| 1.25/1.73A (Typ./Max.) | 10.8/12.0/13.4V (Min./Typ./Max.) | 15/18.7W (Typ./Max.) | ||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 376.32(W)×301.056(H) mm, outline size of 396(W)×324(H)×13.38(D) mm, viewing area size of 379.72(W)×304.46(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 1.80Kgs (Typ.). As a TN, Normally White, Transmissive LCM product, G190ETN01.4 can provides 450 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 7/3 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 90% (NTSC). This product adopted 4 strings WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 50K hours, With LED Driver. G190ETN01.4 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.).
