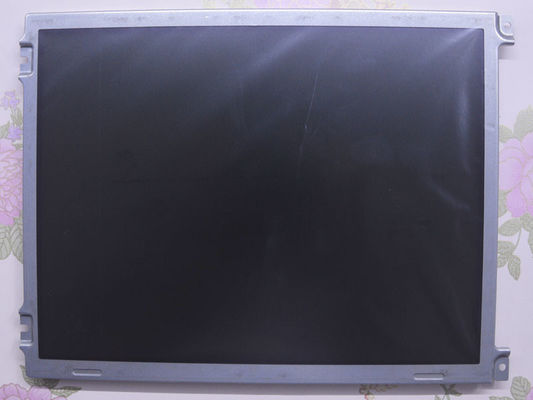

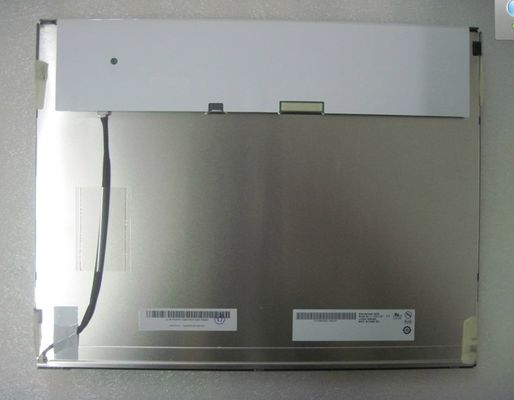

Product Details:
|
| Resolution: | 1024(2)×768(2) (XGA) 85PPI | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 15.0 | Display Area: | 304.128 × 228.096 (H×V) |
| Panel Weight: | 400 (Typ.)(cd/m²) | TEMPERATURE RANGE: | Storage Temp.: -30 ~ 85 °C Operating Temp.: -30 ~ 85 °C |
| Viewing Angle: | 80/80/60/80 (Typ.)(CR≥10) | ||
| High Light: | LVDS Industrial LCD Screen,6 Bit TFT LCD Panel |
||
| Panel Size : | 15.0 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1024(2)×768(2), XGA | RGBW Rectangle | 0.1485×0.1485 mm | 0.297×0.297 mm [85PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 304.128×228.096 mm | 310.18×234.40 mm | 326.5×253.5 mm | 13.1 (Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | ||
| Fixation : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 1.00Kgs (Max.) | Antiglare, Hard coating (3H) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 400 cd/m² (Typ.) | TN, Normally White, Transmissive | 700:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 80/80/60/80 (Typ.)(CR≥10) | 6 o'clock | 5.7/2.3 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 262K/16.2M (6-bit / 6-bit + FRC) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 61% | 82% | 63% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 63% | 45% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type (Bottom side) | - | - | 50K(Min.) | Replaceable | |
| Interface Features : | Position | Type | WLED Driver | |||
| - | Connector | With LED Driver | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| E&T | 3808K-F05N-02R | 1 pcs | 1.25 mm | 5 pins | ||
| Driver Electrical : | Current Input | Voltage Input | Consumption | |||
| 0.61A | 10.8/12.0/12.6V (Min./Typ./Max.) | 7.32/10.0W (Typ./Max.) | ||||
| Basic Detail : | Manufacturer | Model Name | G150XG01 V3 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | G150XG01 V.3 | |
| Panel Size | 15.0 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | -30 ~ 85 °C | ST Temperature | -30 ~ 85 °C |
| Vibration Level | 1.5G (14.7 m/s²) | RoHS |
whose pixels are arranged in RGBW Rectangle. As for mechanical detail, it features active area of 304.128(W)×228.096(H) mm, outline size of 326.5(W)×253.5(H)×13.1(D) mm, viewing area size of 310.18(W)×234.40(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 1.00Kgs (Max.). As a TN, Normally White, Transmissive LCM product, G150XG01 V3 can provides 400 cd/m² display brightness 700:1 transimissive contrast ratio, 80/80/60/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 5.7/2.3 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 262K/16.2M colors, also with performance of color gamut 60% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 50K hours, With LED Driver. G150XG01 V3 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ
