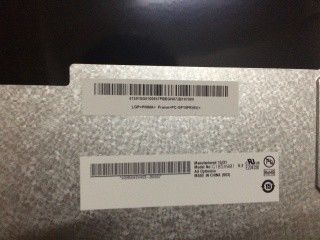

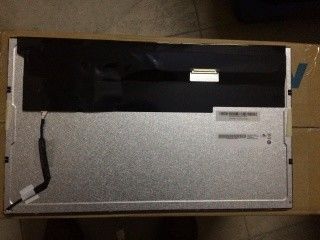

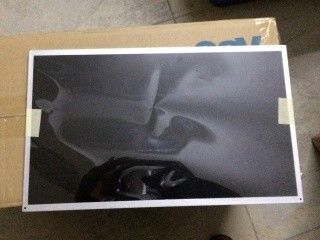

Product Details:
|
| Resolution: | 1366(RGB)×768 [WXGA] 84PPI | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 18.5 | Display Area: | 409.8(H)×230.4(V) Mm |
| Panel Weight: | 450 Cd/m² (Typ.) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 60 °C ; Storage Temperature: -20 ~ 60 °C |
| Viewing Angle: | 85/85/80/80 (Typ.)(CR≥10) | Bezel Opening: | 413.4(W)×234.0(H) Mm |
| High Light: | LVDS Industrial LCD Screen,6 Bit TFT LCD Panel |
||
| Pixel Features : | Pixel Format | 1366(RGB)×768 [WXGA] | Dot Pitch | 0.100×0.300 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.300×0.300 mm (H×V) [84PPI] | |
| Mechanical Size : | Display Area | 409.8×230.4 mm (H×V) | Bezel Area | 413.4×234.0 mm (H×V) |
| Outline Dim. | 430.4×254.7 mm (H×V) | Outline Depth | 12.7±0.5 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | ||
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Weight | 1.55Kgs (Max.) | Surface | Antiglare, Hard coating (3H) |
| Basic Information : | Brightness | 450 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | - | Response Time | 3.5/1.5 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.43/1.54 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 66% | sRGB | 88% coverage |
| Adobe RGB | 68% coverage | DCI-P3 | 68% coverage | |
| Rec.2020 | 49% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Back-light Features: | Lamp Shape | - | Lamp Type | WLED | Life Time | 50K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | Replaceable | Amount | - | Position | Edge light type (Bottom side) | |
| Interface Features : | Type | Connector | Position | Lamp Driver | With LED Driver | |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| E&T | 3808K-F05N-12R | 1.25 mm | 5 pins | 1 pcs | ||
| Driver Electrical : | Voltage Input | 12.0V (Typ.) | Current Input | 0.75/1.0A (Typ./Max.) | ||
| Consumption | 9.0/13.2W (Typ./Max.) | |||||
| Power Consumption : | 13.5W (Typ.) |
|---|---|
| Frame Rate : | 60Hz |
| Reverse Scan : | No |
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type (Bottom side) | - | - | 50K(Min.) | No | |
| Interface Features : | Position | Type | WLED Driver | |||
 |
Connector | With LED Driver | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| E&T | 3808K-F05N-12R | 1 pcs | 1.25 mm | 5 pins | ||
| Driver Electrical : | Current Input | Voltage Input | Consumption | |||
| 0.75/1.0A (Typ./Max.) | 12.0±1.2V | 9.0/13.2W (Typ./Max.) | ||||
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| G185XW01 V2 | a-Si TFT-LCD , LCM | 97.18G01.200 | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| 0 ~ 60 °C | -20 ~ 60 °C |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 409.8(W)×230.4(H) mm, outline size of 430.4(W)×254.7(H)×13.2(D) mm, viewing area size of 413.4(W)×234.0(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 1.55Kgs (Max.). As a TN, Normally White, Transmissive LCM product, G185XW01 V2 can provides 450 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 3.5/1.5 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 68% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 50K hours, With LED Driver. G185XW01 V2 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.).
