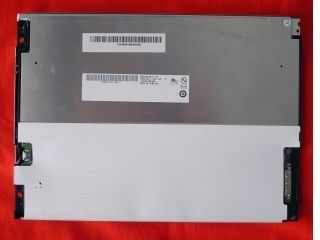

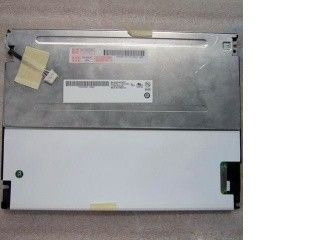

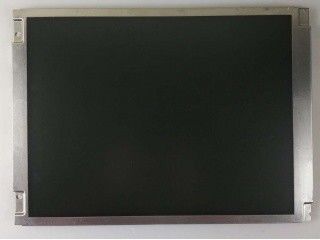

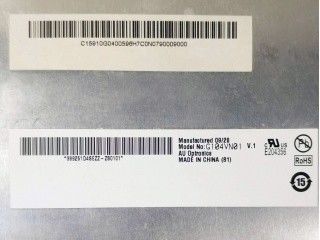

Product Details:
|
| Resolution: | 640(RGB)×480 [VGA] 76PPI | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 10.4 | Display Area: | 211.2(H)×158.4(V) Mm |
| Panel Weight: | 450 Cd/m² (Typ.) | TEMPERATURE RANGE: | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -30 ~ 85 °C |
| Viewing Angle: | 80/80/60/80 (Typ.)(CR≥10) | Bezel Opening: | 214.8(W)×162.4(H) Mm |
| High Light: | LVDS Industrial LCD Screen,6 Bit TFT LCD Panel |
||
| Basic Information : | Luminance | 450 cd/m² (Typ.) | Contrast Ratio | 700 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 6 o'clock | Response Speed | 20/10 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 80/80/60/80 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.330 | Support Color | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Temperature | 6638K | White Uniformity | 1.33 (Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 44% | sRGB | 62% coverage |
| Adobe RGB | 46% coverage | DCI-P3 | 46% coverage | |
| Rec.2020 | 33% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 640(RGB)×480 [VGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.110×0.330 mm | Pixel Pitch(W×H) | 0.330×0.330 mm [76PPI] | |
| Physical Size : | Active Viewing | 211.2(W)×158.4(H) mm | Overall Dim. | 243(W)×176.6(H) mm |
| Bezel Opening | 214.8(W)×162.4(H) mm | Overall Depth | 8.5±0.5 mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||
| Fixation : | Face mounting holes (1-Φ3.4, 3-R1.7) on left, right bezel | |||
| Other Detail : | Mass | 390g (Typ.) | Surface | Antiglare, Hard coating (3H) |
| Lamp Features: | Lamp Shape | 2 strings | Lamp Type | WLED | Position | Edge light type (Bottom side) |
|---|---|---|---|---|---|---|
| Exchange | Replaceable | Amount | 8S2P | Life | 50K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 80mA (Typ.) | Input Voltage | 25.5/29.2V (Typ./Max.) | ||
| Consumption | 4.1W (Typ.) | |||||

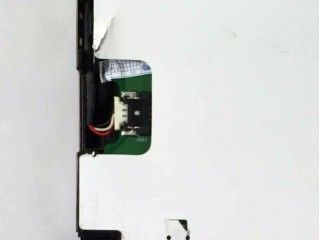

| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| E&T | 3808K-F05N-02R | 1 pcs | 1.25 mm | 5 pins | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Input Current | 0.37A (Typ.) | Input Voltage | 10.8/12.0/12.6V (Min./Typ./Max.) | ||
| Consumption | 4.44W (Typ.) | |||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 211.2(W)×158.4(H) mm, outline size of 243(W)×176.6(H)×8.5(D) mm, viewing area size of 214.8(W)×162.4(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 350g (Typ.). As a TN, Normally White, Transmissive LCM product, G104VN01 V1 can provides 450 cd/m² display brightness 700:1 transimissive contrast ratio, 80/80/60/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 20/10 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 262K/16.2M colors, also with performance of color gamut 45% (NTSC). This product adopted 8S2P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 50K hours, With LED Driver. G104VN01 V1 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.)
