Product Details:
|
| Resolution: | 280(RGB)×800, WXGA, 149PPI | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 10.1 | Display Area: | 216.96(W)×135.6(H) Mm |
| Panel Weight: | 400 Cd/m² (Typ.) | TEMPERATURE RANGE: | Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C |
| Viewing Anglev: | 85/85/85/85 (Typ.)(CR≥10) | ||
| High Light: | LVDS Industrial LCD Screen,6 Bit TFT LCD Panel |
||

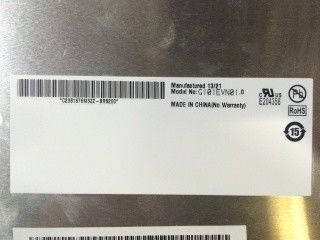

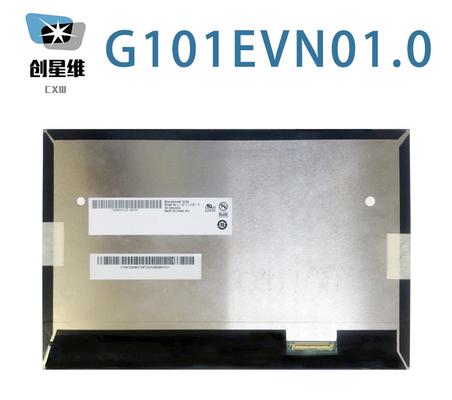

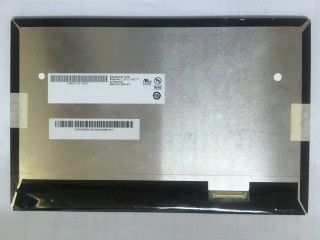

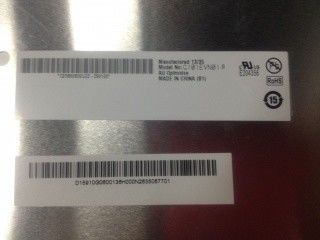

| Basic Detail : | Manufacturer | Model Name | G101EVN01.0 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 10.1 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | -20 ~ 60 °C | ST Temperature | -30 ~ 70 °C |
| Basic Information : | Luminance | 400 cd/m² (Typ.) | Contrast Ratio | 1300 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 25 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Operating Mode | MVA, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25 (Max.)(5 points) | |
| 1931 Color Gamut : | NTSC Ratio | 47% | sRGB | 66% coverage |
| Adobe RGB | 49% coverage | DCI-P3 | 49% coverage | |
| Rec.2020 | 35% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 1280(RGB)×800 [WXGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.0565×0.1695 mm | Pixel Pitch(W×H) | 0.1695×0.1695 mm [149PPI] | |
| Physical Size : | Active Viewing | 216.96(W)×135.6(H) mm | Overall Dim. | 229.46(W)×149.2(H) mm |
| Bezel Opening | 220.36(W)×139.1(H) mm | Overall Depth | 2.98/4.96 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:10 | Shape Style | ||
| Fixation : | Without | |||
| Other Detail : | Mass | 187g (Max.) | Surface | Hard coating, Reflection 1.5% (Max.) |
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Power Consumption : | 3.4W (Max.) |
| Signal Electrical : | Input Current | 170/245mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 0.56/0.8W (Typ./Max.) | Signal Interface | LVDS (1 ch, 6-bit) | |||
| Interface Features : | Position | Physical Type | Connector | |||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |

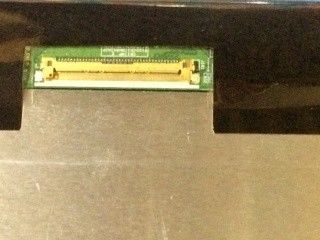

| JAE | HD1S040HA1 | 1 pcs | 0.5 mm | 40 pins | LVDS-40P1C6B-060A | |
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | - | Life | 15K(Min.) (Hours) | |
| Interface Features : | Position | - | Physical Type | Included in signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Input Current | 217mA (Max.) | Input Voltage | 5.5/12.0V (Min./Max.) | ||
| Consumption | 2.6W (Max.) | |||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 216.96(W)×135.6(H) mm, outline size of 229.46(W)×149.2(H)×4.96(D) mm, viewing area size of 220.36(W)×139.1(H) mm, with surface treament of Hard coating, Reflection 1.5% (Max.), net weight of 187g (Max.). As a MVA, Normally Black, Transmissive LCM product, G101EVN01.0 can provides 400 cd/m² display brightness 1300:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 45% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. G101EVN01.0 utilizes LVDS (1 ch, 6-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.).
