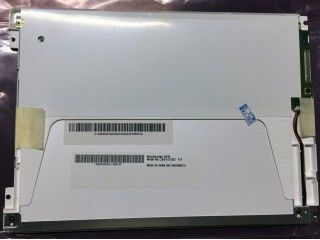

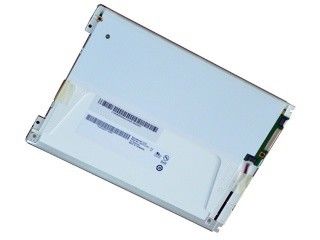

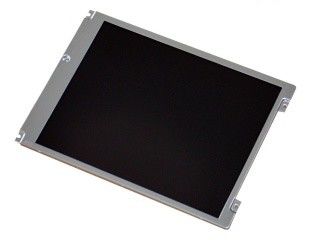

Product Details:
|
| Resolution: | 800(RGB)×600 (SVGA) 119PPI | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 8.4 | Display Area: | 170.4 × 127.8 (H×V) |
| Panel Weight: | 250 Cd/m² (Typ.) | TEMPERATURE RANGE: | Storage Temp.: -20 ~ 70 °C Operating Temp.: -20 ~ 70 °C |
| Viewing Angle: | 80/80/80/60 (Typ.)(CR≥10) | Bezel Opening: | 173.8(W)×131.2(H) Mm |
| High Light: | LVDS Industrial LCD Screen,6 Bit TFT LCD Panel |
||
| Basic Info : | Panel Brand |  |

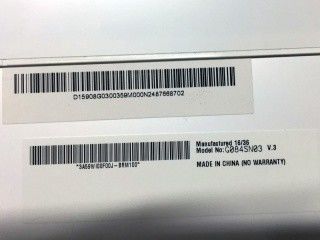

Panel Model | G084SN03 V3 |
|---|---|---|---|---|
| Diagonal Size | 8.4" | Application |
|
|
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | G084SN03 V.3 | |
| Reliability : | Operating Temp. | -20 ~ 70 °C | Storage Temp. | -20 ~ 70 °C |
| RoHS State | |
Vibration Rating | 1.5G (14.7 m/s²) |
| Pixel Features : | Pixel Format | 800(RGB)×600 [SVGA] | Dot Pitch | 0.071×0.213 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.213×0.213 mm (H×V) [119PPI] | |
| Mechanical Size : | Display Area | 170.4×127.8 mm (H×V) | Bezel Area | 173.8×131.2 mm (H×V) |
| Outline Dim. | 203×142.5 mm (H×V) | Outline Depth | 5.7±0.5 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | ||
| Holes & Brackets : | Face mounting holes (2-Φ3.0, 2-R1.5) | |||
| Other Features : | Weight | TBD | Surface | Antiglare, Hard coating (3H) |
| Basic Information : | Brightness | 250 cd/m² (Typ.) | Contrast Ratio | 600:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/80/60 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | - | Response Time | 20/10 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.330 | Color Numbers | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Temperature | 6638K | White Uniformity | 1.33 (Typ.)(9 points)  |
|
| 1931 Color Gamut : | NTSC Ratio | 48% | sRGB | 68% coverage |
| Adobe RGB | 51% coverage | DCI-P3 | 50% coverage | |
| Rec.2020 | 36% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Frame Frequency : | 60Hz Reverse Scan :
| Yes (U/D, L/R) |
|---|---|---|
| Power Consumption : | 3.66W (Typ.) |
| Back-light Features: | Lamp Shape | 3 strings | Lamp Type | WLED | Life Time | 30K(Typ.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | Replaceable | Amount | 3 strings | Position | Edge light type (Bottom side) | |
| Lamp Electrical : | Voltage Input | 28.8/32.85V (Typ./Max.) | Current Input | 25/26.3mA (Typ./Max.) | ||
| Consumption | 2.16/2.63W (Typ./Max.) |
|||||
| Interface Features : | Type | Connector | Position | - | Lamp Driver | With LED Driver |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| E&T | 3808K-F04N-02R | 1.25 mm | 4 pins | 1 pcs | ||
| Driver Electrical : | Voltage Input | 12.0±1.2V | Current Input | 230mA (Typ.) | ||
| Consumption | 2.76/2.97W (Typ./Max.) | |||||
| Signal Systerm : | LVDS (1 ch, 6/8-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 270/330mA (Typ./Max.) | ||
| Consumption | 0.9/1.2W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| STM | MSB24013P20 | 1.0 mm | 20 pins | 1 pcs | LVDS-20P1C8B-140A | |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 170.4(W)×127.8(H) mm, outline size of 203(W)×142.5(H)×6.2(D) mm, viewing area size of 173.8(W)×131.2(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of TBD. As a TN, Normally White, Transmissive LCM product, G084SN03 V3 can provides 250 cd/m² display brightness 600:1 transimissive contrast ratio, 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 20/10 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 262K/16.2M colors, also with performance of color gamut 45% (NTSC). This product adopted 3 strings WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 30K hours, With LED Driver. G084SN03 V3 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.).
