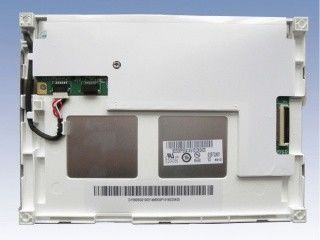

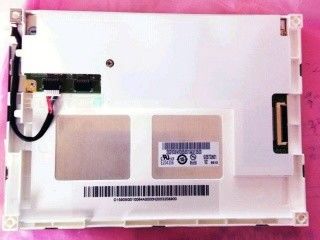

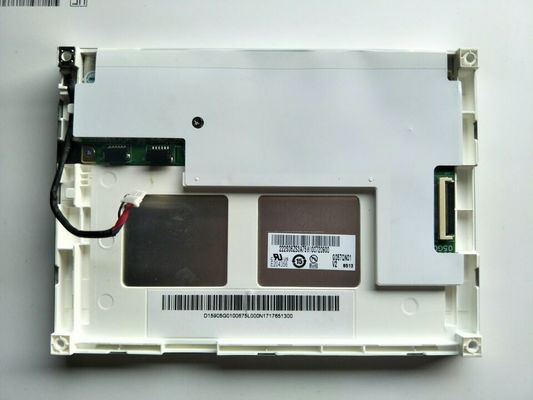

Product Details:
|

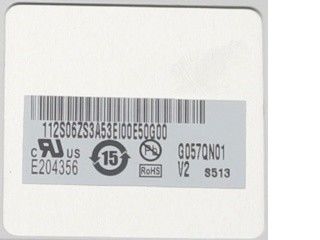

| Resolution: | 320(RGB)×240, QVGA, 70PPI | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 5.7 | Display Area: | 115.2(W)×86.4(H) Mm |
| Panel Weight: | 150/165g (Typ./Max.) | TEMPERATURE RANGE: | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -30 ~ 85 °C |
| High Light: | LVDS Industrial LCD Screen,6 Bit TFT LCD Panel |
||
| Basic Information : | Brand | Model | G057QN01 V2 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For |
|
|
| Screen Size | 5.7" | Alias | 97.05G01.200 | |
| Environment : | Storage Temp. | -30 ~~ 85 °C | Operating Temp. | -30 ~~ 85 °C |
| RoHS | Vibration | 1.5G (14.7 m/s²) |
| Pixel Features : | Resolution | 320(RGB)×240, QVGA | Dot Pitch(mm) | 0.120×0.360 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.360×0.360 (H×V) [70PPI] | |
| Mechanical Size : | Active Area(mm) | 115.2(H) × 86.4(V) | Bezel Area(mm) | 118.2(H) × 89.4(V) |
| Outline Dim.(mm) | 144(H) × 104.6(V) | Depth(mm) | 12.3/12.8 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Mounting : | Rear mounting holes (4-Φ2.6) | |||
| Other Spec : | Weight | 150/165g (Typ./Max.) | Treatment | Antiglare, Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 800 (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/70/70 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | 12 o'clock | Response(ms) | 15/10 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | 1.30 (Max.)(5 points) | |
| 1931 Color Gamut : | NTSC Ratio | 49% | sRGB | 69% coverage |
| Adobe RGB | 52% coverage | DCI-P3 | 51% coverage | |
| Rec.2020 | 37% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity |
| Frame Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (U/D, L/R) |
| Power Consumption : | 3.34W (Typ.) |
| Time Controller (T-CON) : | Embedded T-CON |
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 115/130mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 0.46/0.51W (Typ./Max.) | |||||
| Signal Type : | CMOS (1 ch, 6-bit) | Signal Voltage | 0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| STARCONN | 089H33-000100-G2-R | 1 pcs | 33 pins | 0.5 mm | DRGB-33P1C6B-010A | |
| Backlight Features: | Shape | - | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | Replaceable | Quantity | - | Life Time | 50K(Min.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 25.6/29.2V (Typ./Max.) | Current Supply | 100mA (Typ.) | ||
| Consumption | 2.56/2.92W (Typ./Max.) | |||||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JST | SM06B-SRKS-G-TB | 1 pcs | 6 pins | 1.0 mm | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 9.0/12.0/20.0V (Min./Typ./Max.) | Current Supply | 0.24/0.29A (Typ./Max.) | ||
| Consumption | 2.88/3.48W (Typ./Max.) | |||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 115.2(W)×86.4(H) mm, outline size of 144(W)×104.6(H)×12.8(D) mm, viewing area size of 118.2(W)×89.4(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 150/165g (Typ./Max.). As a TN, Normally White, Transmissive LCM product, G057QN01 V2 can provides 800 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/70/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 15/10 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 50% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. G057QN01 V2 utilizes CMOS (1 ch, 6-bit) as it's signal inputting systerm, which connected by 33 pins Connector with power supply voltage of 3.3V (Typ.).
