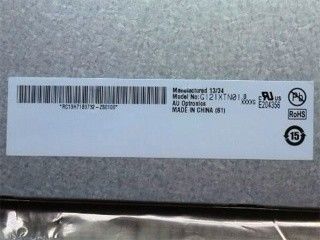

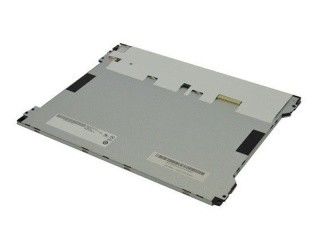

Product Details:
|
| Resolution: | 1024(2)×768(2), XGA, 105PPI | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 12.1INCH | Display Area: | 245.76(W)×184.32(H) Mm |
| Panel Weight: | 495g (Max.) | TEMPERATURE RANGE: | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -30 ~ 85 °C |
| Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) | Bezel Opening: | 250.8(W)×188.4(H) Mm |
| High Light: | LVDS Industrial LCD Screen,6 Bit TFT LCD Panel |
||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 500 cd/m² (Typ.) | TN, Normally White, Transmissive | 700:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| - | 80/80/80/80 (Typ.)(CR≥10) | 25/10 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6638K | 262K/16.2M (6-bit / 6-bit + FRC) | X:0.310; Y:0.330 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 72% | 92% | 72% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 75% | 54% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Screen Size : | 12.1" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1024(2)×768(2), XGA | RGBW Rectangle | 0.120×0.120 mm | 0.240×0.240 mm [105PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 245.76×184.32 mm | 250.8×188.4 mm | 279×209 mm | 9.0 (Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 495g (Max.) | - | Antiglare, Hard coating (3H) | ||
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type (Top side) | 50K(Min.) | 6S3P | 3 strings | Replaceable | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 19.2/21.6V (Typ./Max.) | 50mA (Typ.) | 2.88/3.24W (Typ./Max.) | ||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| With LED Driver | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| E&T | 3808K-F05N-12R | 1 pcs | 5 pins | 1.25 mm | ||
| WLED Driver Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 10.8/12.0/12.6V (Min./Typ./Max.) | 280mA (Typ.) | 3.36/4.2W (Typ./Max.) | ||||
whose pixels are arranged in RGBW Rectangle. As for mechanical detail, it features active area of 245.76(W)×184.32(H) mm, outline size of 279(W)×209(H)×9(D) mm, viewing area size of 250.8(W)×188.4(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 495g (Max.). As a TN, Normally White, Transmissive LCM product, G121XTN01.0 can provides 500 cd/m² display brightness 700:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 25/10 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 262K/16.2M colors, also with performance of color gamut 72% (NTSC). This product adopted 6S3P WLED as it's backlight systerm which was placed as Edge light type (Top side) and have a working life time of 50K hours, With LED Driver. G121XTN01.0 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.)
