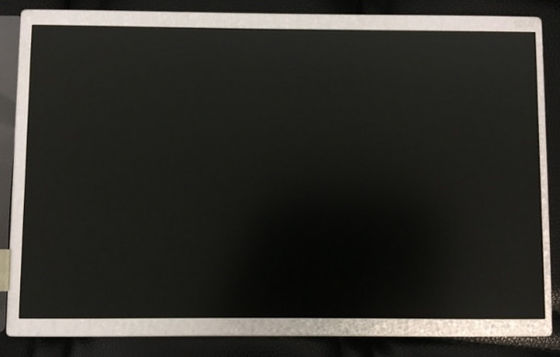

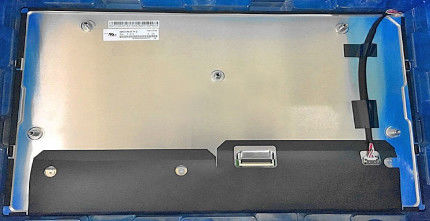

Product Details:
|
| MODEL NUMBER: | B125XTN03.0 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 12.5INCH | RESOLUTION: | 1366×768RGB |
| BRIGHTNESS: | 300CD/M2 | TEMPERATURE RANGE: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| Viewing Angle: | 70/70/55/65 (Typ.)(CR≥10) | ||
| High Light: | 50% NTSC TFT LCD Panel,AUO LCD Display WLED LVDS |
||
| Basic Information : | Brand | Model | B125XTN03.0 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For |
|
|
| Screen Size | 12.5" | Alias | AUO106C | |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
| RoHS | Vibration | 1.5G (14.7 m/s²) |
| Pixel Features : | Resolution | 1366(RGB)×768, WXGA | Dot Pitch(mm) | 0.0675×0.2025 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.2025×0.2025 (H×V) [125PPI] | |
| Mechanical Size : | Active Area(mm) | 276.615(H) × 155.52(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 290.5(H) × 181.4(V) | Depth(mm) | 2.85/3.0 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Mounting : | Without | |||
| Other Spec : | Weight | 250g (Max.) | Treatment | Antiglare |
| Basic Information : | Luminance(cd/m²) | 300 (Typ.) | Contrast Ratio | 400:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 70/70/55/65 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | 6 o'clock | Response(ms) | 16 (Typ.)(Tr+Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.53 (Max.)(5/13 points) | |
| 1931 Color Gamut : | NTSC Ratio | 45% | sRGB | 63% coverage |
| Adobe RGB | 47% coverage | DCI-P3 | 47% coverage | |
| Rec.2020 | 34% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Frame Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Power Consumption : | 4.3W (Max.) |
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 333mA (Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 1.1W (Max.) | |||||
| Signal Type : | eDP (2 Lanes), eDP1.2 | Signal Voltage | - | |||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| HRS | KN38A-30S-0.5H | 1 pcs | 30 pins | 0.5 mm | EDP-30P2L-060A | |
| Backlight Features: | Shape | - | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | - | Life Time | 15K(Min.) (Hours) | |
| Interface Features : | Position | - | Type | Included in signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 5.0/12.0/21.0V (Min./Typ./Max.) | Current Supply | - | ||
| Consumption | 3.2W (Max.) | |||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 276.615(W)×155.52(H) mm, outline size of 290.5(W)×181.4(H)×3(D) mm, with surface treament of Antiglare, net weight of 250g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a TN, Normally White, Transmissive LCM product, B125XTN03.0 can provides 300 cd/m² display brightness 400:1 transimissive contrast ratio, 70/70/55/65 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 16 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 45% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. B125XTN03.0 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.)
