Product Details:
|
| MODEL NUMBER: | B084SN05 V7 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 8.4INCH | RESOLUTION: | 800×600 RGB |
| BRIGHTNESS: | 500CD/M2 | TEMPERATURE RANGE: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| High Light: | 50% NTSC TFT LCD Panel,AUO LCD Display WLED LVDS |
||
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| B084SN05 V7 | a-Si TFT-LCD , LCM | B084SN05 V.7 | ||
| Designed For : |
|
|||
| Panel Size : | 8.4 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 800(RGB)×600, SVGA | RGB Vertical Stripe | 0.071×0.213 mm | 0.213×0.213 mm [119PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 170.4×127.8 mm | - | - | - | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| - | TN, Normally White, Transmissive | - | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| - | - | - | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| - | 262K (6-bit) |

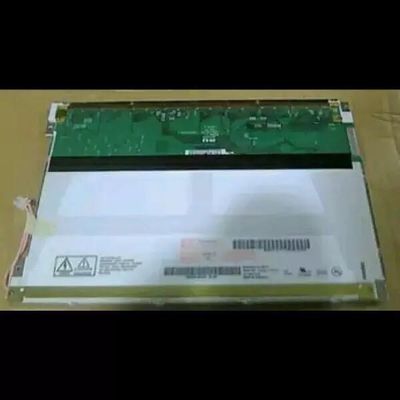

B084SN05 V7 (Alias: B084SN05 V.7) is a 8.4 inch diagonal a-Si TFT-LCD display screen product from AUO. B084SN05 V7 supports display 800(RGB)×600 (SVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 170.4(W)×127.8(H) mm. As a TN, Normally White, Transmissive LCM product, B084SN05 V7 can provides . Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. B084SN05 V7 utilizes LVDS (1 ch, 6-bit) as it's signal inputting systerm. For more latest product detail of B084SN05 V7 we strongly recommend that you should refer to
datasheet listed on Panelook.com or contact with AUO.
