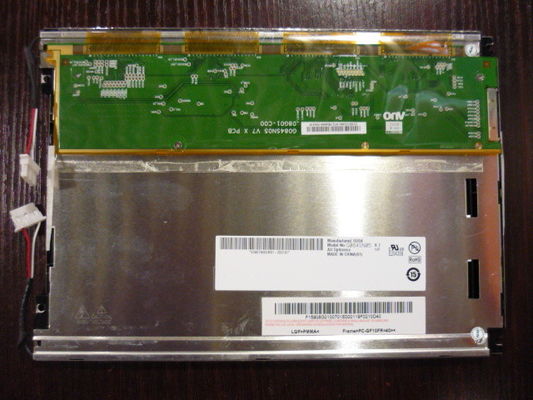

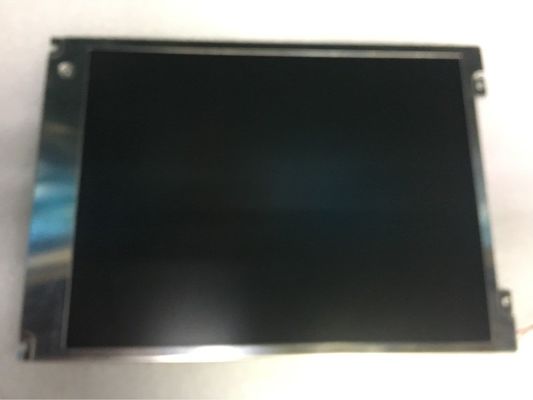

B084SN05 V0 AUO 8.4INCH 800×600RGB 500CD/M2 WLED LVDS Storage Temp.: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY

B084SN05 V0 AUO 8.4INCH 800×600RGB 500CD/M2 WLED LVDS Storage Temp.: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY
B084SN05 V0 AUO 8.4INCH 800×600RGB 500CD/M2 WLED LVDS Storage Temp.: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY B084SN05 V0 AUO 8.4INCH 800×600RGB 500CD/M2 WLED LVDS Storage Temp.: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY B084SN05 V0 AUO 8.4INCH 800×600RGB 500CD/M2 WLED LVDS Storage Temp.: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY

Large Image :  B084SN05 V0 AUO 8.4INCH 800×600RGB 500CD/M2 WLED LVDS Storage Temp.: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: CHINA
Brand Name: AUO
Certification: ISO9001
Model Number: B084SN05 V0
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD60
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability: 100PCS
Contact Now

B084SN05 V0 AUO 8.4INCH 800×600RGB 500CD/M2 WLED LVDS Storage Temp.: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: B084SN05 V0 BRAND: AUO
SIZE: 8.4INCH RESOLUTION: 800×600 RGB
BRIGHTNESS: 500CD/M2 TEMPERATURE RANGE: Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
Lamp Type: WLED Signal Interface: LVDS
High Light:

50% NTSC TFT LCD Panel

,

AUO LCD Display WLED LVDS

AUO B084SN05 V0 Application Details

Basic Info : Panel Brand   Panel Model B084SN05 V0
Diagonal Size 8.4" Application
Panel Type a-Si TFT-LCD , LCM Model Alias B084SN05 V.0


AUO B084SN05 V0 Mechanical Details

Pixel Features : Pixel Format 800(RGB)×600 [SVGA] Dot Pitch 0.071×0.213 mm (H×V)
Configuration RGB Vertical Stripe Pixel Pitch 0.213×0.213 mm (H×V) [119PPI]
Mechanical Size : Display Area 170.4×127.8 mm (H×V) Bezel Area -
Outline Features : Form Factor Flat Rectangle Orientation Landscape type
Aspect Ratio 4:3 (H:V) Shape Style


AUO B084SN05 V0 Optical Details

Basic Information : Brightness - Contrast Ratio -
Viewing Angle - Optical Mode TN, Normally White, Transmissive
Viewing Direction - Response Time -
Color Performance : Chromaticity - Color Numbers 262K (6-bit)
B084SN05 V0 supports display 800(RGB)×600 (SVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 170.4(W)×127.8(H) mm. As a TN, Normally White, Transmissive LCM product, B084SN05 V0 can provides . Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. B084SN05 V0 utilizes LVDS (1 ch, 6-bit) as it's signal inputting systerm. For more latest product detail of B084SN05 V0 We strongly recommend that you should refer to datasheet listed on Panelook.com or contact with AUO or it's distributor. The above parameters are not from the datasheet, only as a reference, please use with caution!
B084SN05 V0 AUO 8.4INCH 800×600RGB 500CD/M2 WLED LVDS Storage Temp.: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY 0
