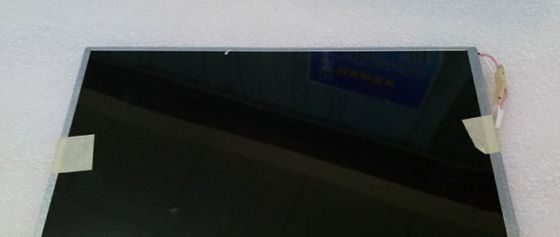

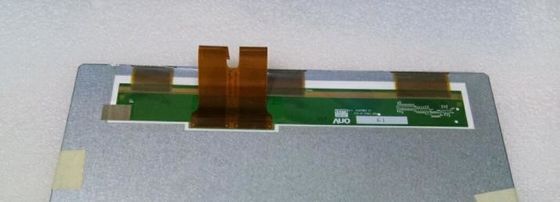

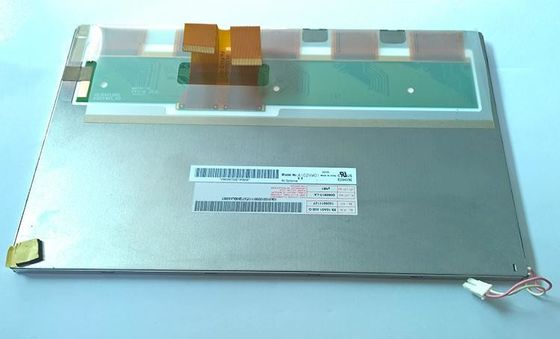

Product Details:
|
| MODEL NUMBER: | A102VW01 V4 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 10.2INCH | RESOLUTION: | 800×480 RGB |
| BRIGHTNESS: | 400CD/M2 | TEMPERATURE RANGE: | Storage Temp.: -40 ~ 85 °C Operating Temp.: -30 ~ 85 °C |
| Highlight: | 50% NTSC TFT LCD Panel,AUO LCD Display WLED LVDS |
||
| Basic Info : | Panel Brand | Panel Model | A102VW01 V4 | |
|---|---|---|---|---|
| Diagonal Size | 10.2" | Application |
|
|
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | A102VW01 V.4 | |
| Reliability : | Operating Temp. | -30 ~ 85 °C | Storage Temp. | -40 ~ 85 °C |
| RoHS State | Vibration Rating | 2.9G (28.4 m/s²) |
| Pixel Features : | Pixel Format | 800(RGB)×480 [WVGA] | Dot Pitch | 0.0925×0.2775 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.2775×0.2775 mm (H×V) [91PPI] | |
| Mechanical Size : | Display Area | 222×133.2 mm (H×V) | Bezel Area | 224.9×136.11 mm (H×V) |
| Outline Dim. | 235×145.9 mm (H×V) | Outline Depth | 5.9±0.3 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 15:9 (H:V) | Shape Style | ||
| Other Features : | Weight | 335±10g | Surface | Antiglare |
| Basic Information : | Brightness | 400 cd/m² (Typ.) | Contrast Ratio | 400:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 65/65/45/65 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | 6 o'clock | Response Time | 12/18 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.290; Wy:0.320 | Color Numbers | 262K (6-bit) |
| Color Temperature | 8022K | White Uniformity | 1.25/1.43 (Typ./Max.)(9 points) |
| Frame Frequency : | 60Hz |
|---|---|
| Reverse Scan : | Yes (U/D, L/R) |
| Back-light Features: | Lamp Shape | - | Lamp Type | CCFL | Life Time | 30K(Typ.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 1 pcs | Position | Edge light type (Top side) | |
| Lamp Electrical : | Voltage Input | 770/830V (Typ./Max.) | Current Input | 5.0/6.5/7.5mA (Min./Typ./Max.) | ||
| Frequency | 60/80KHz (Typ./Max.) | Kick-off Voltage | 1420/1850/1950V (Min.)(Ta=+25℃/0/-20℃) | |||
| Interface Features : | Type | Connector | Position | - | Lamp Driver | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | BHSR-02VS-1 | 3.5 mm | 2 pins | 1 pcs | BLL-2PINS-HL | |
| Signal Systerm : | TTL (1 ch, 6-bit) | Logic Voltage | 0≤VIL≤0.2VCC; 0.8VCC≤VIH≤VCC | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3/8.8/15/-7.0/3.6V (Typ.)(VCC/AVDD/VGH/VGL/VCOM) | Current Input | 3.5/20/0.05/-0.2mA (Typ.)(ICC/IDD/IGH/IGL) | ||
| Interface Features : | Type | FPC | Position | - | ||
| FPC Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| 0.5 mm | 30 pins | 2 pcs | ||||
| Package Carton : | Amount | Net Weight | Carton Size (L×W×H) |
|---|---|---|---|
| 30 pcs / box | 13.0 Kg | 448×402×350 mm |
