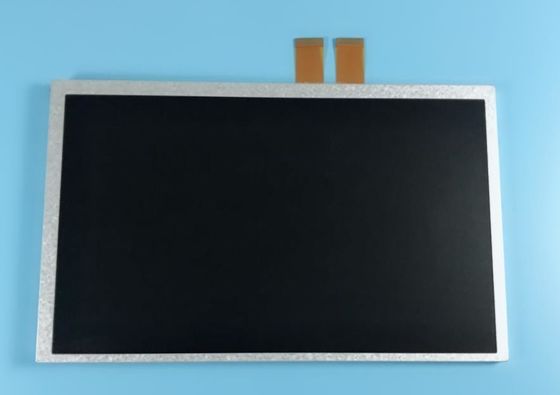

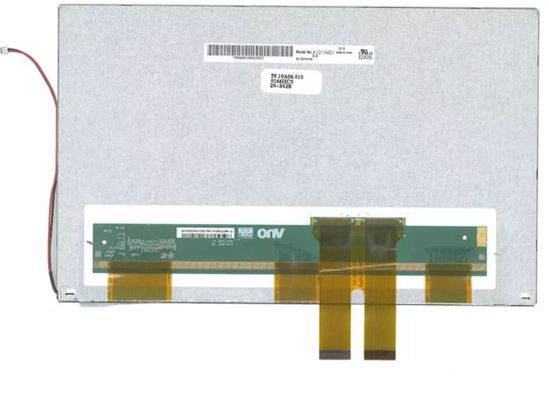

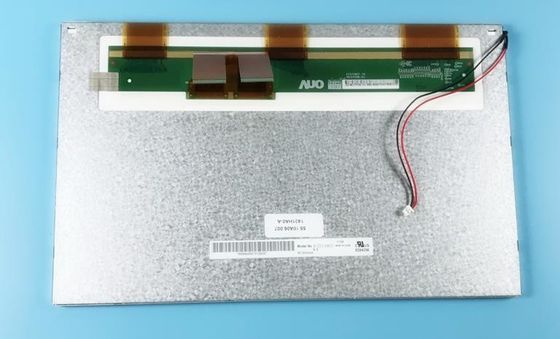

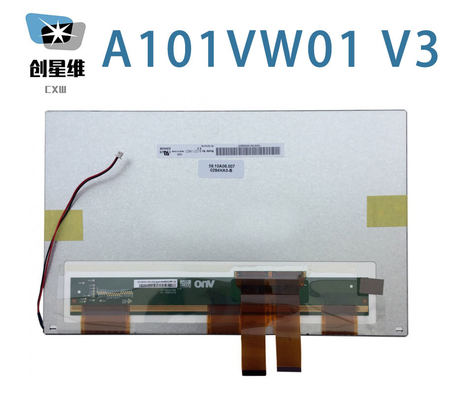

Product Details:
|
| MODEL NUMBER: | A101VW01 V3 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 10.1INCH | RESOLUTION: | 800×480 RGB |
| BRIGHTNESS: | 300CD/M2 | TEMPERATURE RANGE: | Storage Temp.: -20 ~ 70 °C Operating Temp.: -10 ~ 60 °C |
| Viewing Angle: | 65/65/45/65 (Typ.)(CR≥10) | ||
| High Light: | 50% NTSC TFT LCD Panel,AUO LCD Display WLED LVDS |
||
| Basic Detail : | Manufacturer | Model Name | A101VW01 V3 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | A101VW01 V.3 | |
| Panel Size | 10.1 inch | Designed For |
|
|
| Maximum Ratings : | OP Temperature | -10 ~ 60 °C | ST Temperature | -20 ~ 70 °C |
| Basic Information : | Luminance | 300 cd/m² (Typ.) | Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 6 o'clock | Response Speed | 12/18 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 65/65/45/65 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.330 | Support Color | 262K (6-bit) |
| Color Temperature | 6638K | White Uniformity | 1.33/1.43 (Typ./Max.)(9 points) |
| Pixel Features : | Number of Pixel | 800(RGB)×480 [WVGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.0915×0.2745 mm | Pixel Pitch(W×H) | 0.2745×0.2745 mm [92PPI] | |
| Physical Size : | Active Viewing | 219.6(W)×131.76(H) mm | Overall Dim. | 235(W)×145.9(H) mm |
| Bezel Opening | 221.6(W)×133.76(H) mm | Overall Depth | 5.24 (Typ.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 15:9 | Shape Style | ||
| Fixation : | Side mounting holes (6-M2) on left, right bezel | |||
| Other Detail : | Mass | 315g | Surface | Antiglare |
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (U/D, L/R) |
| Power Consumption : | 2.64W (Typ.) |
| Time Controller (T-CON) : | Need external T-CON |
| Signal Electrical : | Input Current | 3/32.5/0.231/0.244mA (Typ.)(ICC/IDD/IGH/IGL) | Input Voltage | 3.3/8.8/15/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | Parallel RGB (1 ch, 6-bit) | |||
| Logic Voltage for Signals : | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | |||||
| Interface Features : | Position | - | Physical Type | FPC | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| 2 pcs | 0.5 mm | 30 pins | ||||
| Lamp Features: | Lamp Shape | Array | Lamp Type | WLED | Position | Edge light type (Bottom side) |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 3S11P | Life | 20K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 220mA (Typ.) | Input Voltage | 12.0V (Typ.) | ||
| Consumption | 2.64W (Typ.) | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JOIN TEK | JT1025 | 1 pcs | 2 pins | BLE-2PINS-AC | ||
| Backlight Driver : | No | |||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 219.6(W)×131.76(H) mm, outline size of 235(W)×145.9(H) mm, viewing area size of 221.6(W)×133.76(H) mm, with surface treament of Antiglare, net weight of 315g. As a TN, Normally White, Transmissive LCM product, A101VW01 V3 can provides 300 cd/m² display brightness 500:1 transimissive contrast ratio, 65/65/45/65 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 12/18 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 48% (NTSC). This product adopted 3S11P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 20K hours, external backlight driver is additionally needed. A101VW01 V3 utilizes Parallel RGB (1 ch, 6-bit) as it's signal inputting systerm, which connected by 60 pins FPC with power supply voltage of 3.3/8.8/15/-7.0V (Typ.)(VCC/AVDD/VGH/VGL)
