Product Details:
|

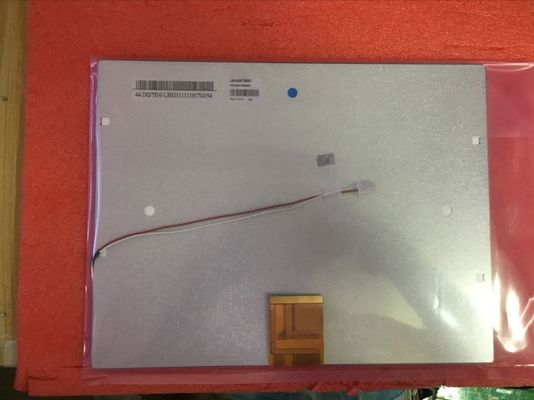

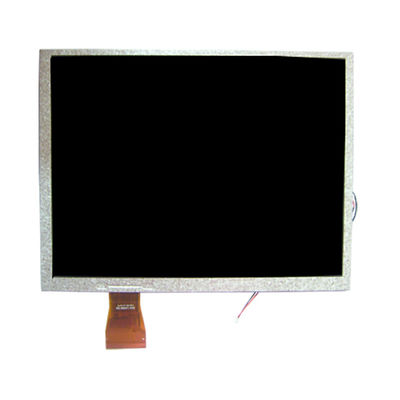

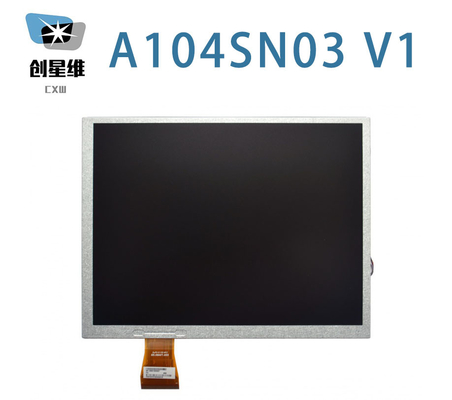

| MODEL NUMBER: | A104SN03 V1 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 10.4INCH | RESOLUTION: | 800×600 RGB |
| BRIGHTNESS: | 350CD/M2 | TEMPERATURE RANGE: | Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -20 ~ 70 °C |
| High Light: | 50% NTSC TFT LCD Panel,AUO LCD Display WLED LVDS |
||
| Basic Info : | Panel Brand | Panel Model | A104SN03 V1 | |
|---|---|---|---|---|
| Diagonal Size | 10.4" | Application |
|
|
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | A104SN03 V.1 | |
| Reliability : | Operating Temp. | -10 ~ 60 °C | Storage Temp. | -20 ~ 70 °C |
| RoHS State | Vibration Rating | - |
| Pixel Features : | Pixel Format | 800(RGB)×600 [SVGA] | Dot Pitch | 0.088×0.264 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.264×0.264 mm (H×V) [96PPI] | |
| Mechanical Size : | Display Area | 211.2×158.4 mm (H×V) | Bezel Area | 213.2×160.4 mm (H×V) |
| Outline Dim. | 228.4×175.4 mm (H×V) | Outline Depth | 6.2±0.3 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | ||
| Holes & Brackets : | Without | |||
| Other Features : | Weight | 400±20g | Surface | Antiglare, Hard coating (3H) |
| Basic Information : | Brightness | 350 cd/m² (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 75/75/50/60 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | 6 o'clock | Response Time | 30 (Typ.)(Tr+Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.330; Wy:0.350 | Color Numbers | 262K/16.2M (6-bit / 6-bit + Dithering) |
| Color Temperature | 5598K | White Uniformity | 1.25/1.33 (Typ./max.)(9 points)  |
|
| 1931 Color Gamlt : | NTSC Ratio | 52% | sRGB | 68% coverage |
| Adobe RGB | 53% coverage | DCI-P3 | 53% coverage | |
| Rec.2020 | 39% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Frame Frequency : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Power Consumption : | 3.4W (Max.) |
| Time Controller (T-CON) : | Embedded T-CON |
| Back-light Features: | Lamp Shape | Array | Lamp Type | WLED | Life Time | 10K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | No | Amount | 3S12P | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 8.8/10.0/10.7V (Min./Typ./Max.) | Current Input | 300mA (Typ.) | ||
| Consumption | 3.0/3.21W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | - | Lamp Driver | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JOIN TEK | JT1025-1021 | 2 pins | 1 pcs | BLE-2PINS-AC | ||
| Signal Systerm : | TTL (1 ch, 6/8-bit) + SPI | Logic Voltage | GND≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3/11/15/-7V (Typ.)(VCC/AVDD/VGH/VGL) | Current Input | 10/24/0.4/-0.4 (Typ.)(ICC/IDD/IGH/IGL) | ||
| Consumption | 0.43W (Typ.) | |||||
| Interface Features : | Type | FPC | Position | - | ||
| FPC Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| 0.5 mm | 60 pins | 1 pcs | ||||

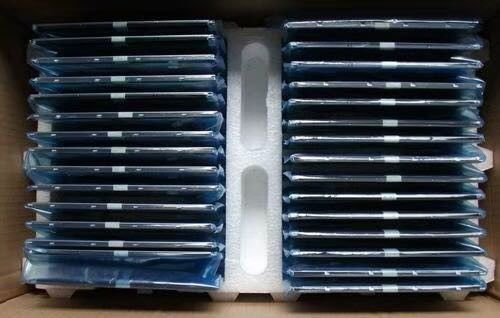

| Package Carton : | Amount | Net Weight | Carton Size (L×W×H) |
|---|---|---|---|
| 20 pcs / box | 11.0 Kgs | 483×296×355 mm |
