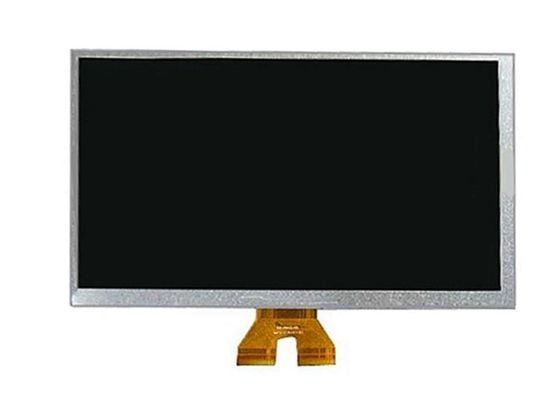

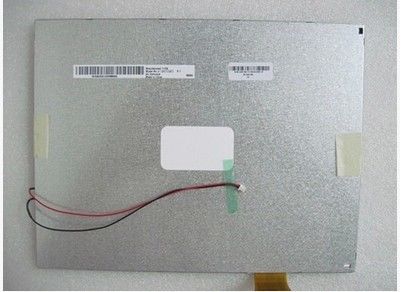

Product Details:
|
| MODEL NUMBER: | A090VW01 V3 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 9INCH | RESOLUTION: | 800×480 RGB |
| BRIGHTNESS: | 250CD/M2 | TEMPERATURE RANGE: | Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -20 ~ 70 °C |
| High Light: | 50% NTSC TFT LCD Panel,AUO LCD Display WLED LVDS |
||
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| A090VW01 V3 | a-Si TFT-LCD , LCM | A090VW01 V.3 | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| -10 ~ 60 °C | -20 ~ 70 °C | - |
| Panel Size : | 9.0 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 800×480(RGB), WVGA | RGB Horizontal Stripe | 0.249×0.0765 mm | 0.249×0.2295 mm [104PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 199.2×110.16 mm | 201.2×112.16 mm | 211.7×125 mm | 4.6 (Typ.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 16:9 (W : H) | Landscape type | ||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 220g (Typ.) | Antiglare, Hard coating (3H) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 250 cd/m² (Typ.) | TN, Normally White, Transmissive | 500:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 70/70/55/70 (Typ.)(CR≥10) | - | 4/12 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 7351K | 16.7M (6-bit + Hi-FRC) | X:0.300; Y:0.320 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 46% | 63% | 48% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 48% | 34% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.33/1.43 (Typ./Max.)(9 points) | ||
| Power Consumption : | 2.1W (Typ.) |
|---|---|
| Frame Rate : | 60Hz |
| Reverse Scan : | Yes (U/D, L/R) |
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 3.7/29/9.2/0.5/0.5mA (Typ.)(IDD/IDPA/IDNA/IGH/IGL) | 3.3/5.5/-5.5/10/-13V (Typ.)(VCC/VDPA/VDNA/VGH/VGL) | - | ||||
| Voltage for Display Signals : | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | |||||
| Interface Features : | Position | Type | Interface | |||
| - | FPC | TTL (1 ch, 8-bit) + SPI | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| 2 pcs | 0.5 mm | 34 pins | ||||
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | Array | 3S8P | 10K(Min.) | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 200mA (Typ.) | 9.6V (Typ.) | 1.92W (Typ.) | ||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | Connector | No | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JST | BHSR-02VS-1 | 1 pcs | 3.5 mm | 2 pins | BLE-2PINS-AC | |
| Package Carton : | Amount | Weight | Carton Size |
|---|---|---|---|
| 30 pcs / box | 9.0 Kgs | 520×340×250 mm (L×W×H) |
