A121SN02 V0 AUO 12.1INCH 800×600RGB 500CD/M2 WLED LVDS Operating Temp.: -10 ~ 60 °C INDUSTRIAL LCD DISPLAY

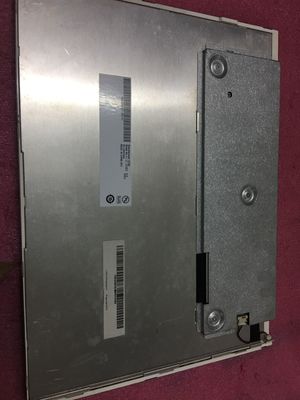

Large Image : A121SN02 V0 AUO 12.1INCH 800×600RGB 500CD/M2 WLED LVDS Operating Temp.: -10 ~ 60 °C INDUSTRIAL LCD DISPLAY

Product Details:

Place of Origin:	CHINA
Brand Name:	AUO
Certification:	ISO9001
Model Number:	A121SN02 V0

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	USD80
Packaging Details:	STANDARD PACKING
Delivery Time:	1-2DAYS
Payment Terms:	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability:	100PCS

Contact Now

A121SN02 V0 AUO 12.1INCH 800×600RGB 500CD/M2 WLED LVDS Operating Temp.: -10 ~ 60 °C INDUSTRIAL LCD DISPLAY

Description

MODEL NUMBER:	A121SN02 V0	BRAND:	AUO
SIZE:	12.1INCH	RESOLUTION:	800×600 RGB
BRIGHTNESS:	500CD/M2	TEMPERATURE RANGE:	Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -20 ~ 70 °C
Highlight:	50% NTSC TFT LCD Panel , AUO LCD Display WLED LVDS

AUO A121SN02 V0 Application Details

Basic Info :	Panel Brand Panel Model A121SN02 V0 Diagonal Size 12.1" Application Panel Type a-Si TFT-LCD , LCM Model Alias A121SN02 V.0

AUO A121SN02 V0 Mechanical Details

Pixel Features :	Pixel Format 800(RGB)×600, SVGA Dot Pitch 0.1025×0.3075 mm (H×V) Configuration RGB Vertical Stripe Pixel Pitch 0.3075×0.3075 mm (H×V) [82PPI]
Mechanical Size :	Display Area 246×184.5 mm (H×V) Bezel Area -
Outline Features :	Form Factor Flat Rectangle Orientation Landscape type Aspect Ratio 4:3 (H:V) Shape Style

AUO A121SN02 V0 Optical Details

Basic Information :	Brightness - Contrast Ratio - Viewing Angle - Optical Mode TN, Normally White, Transmissive Viewing Direction - Response Time -

AUO A121SN02 V0 Backlight Details

Back-light Features :	Lamp Type WLED Amount - Life Time - Replacement - Lamp Shape - Position Edge light type
Interface Features :	Type Position - Lamp Driver With LED Driver

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 246(W)×184.5(H) mm. As a TN, Normally White, Transmissive LCM product, A121SN02 V0 can provides .. This product adopted WLED as it's backlight systerm which was placed as Edge light type, With LED Driver. A121SN02 V0 utilizes LVDS as it's signal inputting systerm Connector. For more latest product detail of A121SN02 V0 we strongly recommend that you should refer to datasheet listed on Panelook.com or contact with AUO.

A121SN02 V0 AUO 12.1INCH 800×600RGB 500CD/M2 WLED LVDS Operating Temp.: -10 ~ 60 °C INDUSTRIAL LCD DISPLAY 0
