B084SN02 V2 AUO 8.4INCH 800×600RGB 500CD/M2 WLED LVDS Storage Temp.: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY

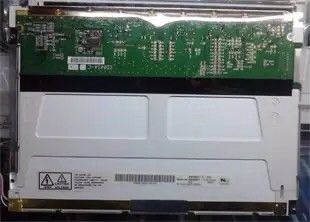

Large Image : B084SN02 V2 AUO 8.4INCH 800×600RGB 500CD/M2 WLED LVDS Storage Temp.: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY

Product Details:

Place of Origin:	CHINA
Brand Name:	AUO
Certification:	ISO9001
Model Number:	B084SN02 V2

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	USD73
Packaging Details:	STANDARD PACKING
Delivery Time:	1-2 DAYS
Payment Terms:	TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability:	100PCS

Contact Now

B084SN02 V2 AUO 8.4INCH 800×600RGB 500CD/M2 WLED LVDS Storage Temp.: -20 ~ 60 °C INDUSTRIAL LCD DISPLAY

Description

MODEL NUMBER:	B084SN02 V2	BRAND:	AUO
SIZE:	8.4INCH	RESOLUTION:	800×600 RGB
BRIGHTNESS:	500CD/M2	Lamp Type:	WLED
Signal Interface:	LVDS	TEMPERATURE RANGE:	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
Highlight:	50% NTSC TFT LCD Panel , AUO LCD Display WLED LVDS

AU Optronics B084SN02 V2 Application Details

Basic Detail :	Manufacturer Model Name B084SN02 V2 Panel Type a-Si TFT-LCD , LCM Another Name B084SN02 V.2 Panel Size 8.4 inch Designed For

AU Optronics B084SN02 V2 Optical Details

Basic Detail :	Luminance - Contrast Ratio - Good View at - Response Speed - Viewing Angle - Operating Mode TN, Normally White, Transmissive

AU Optronics B084SN02 V2 Mechanical Details

Pixel Features :	Number of Pixel 800(RGB)×600, SVGA Arrangement RGB Vertical Stripe Dot Pitch(W×H) 0.071×0.213 mm Pixel Pitch(W×H) 0.213×0.213 mm [119PPI]
Physical Size :	Active Viewing 170.4(W)×127.8(H) mm Overall Dim. -
Outline Features :	Form Shape Flat Rectangle Orientation Landscape type Aspect Ratio(W:H) 4:3 Shape Style

B084SN02 V2 (Alias: B084SN02 V.2) is a 8.4 inch diagonal a-Si TFT-LCD display screen product from AU Optronics. B084SN02 V2 supports display 800(RGB)×600 (SVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 170.4(W)×127.8(H) mm. As a TN, Normally White, Transmissive LCM product, B084SN02 V2 can provides .. For more latest product detail of B084SN02 V2 we strongly recommend that you should refer to datasheet listed on Panelook.com or contact with AU Optronics.
