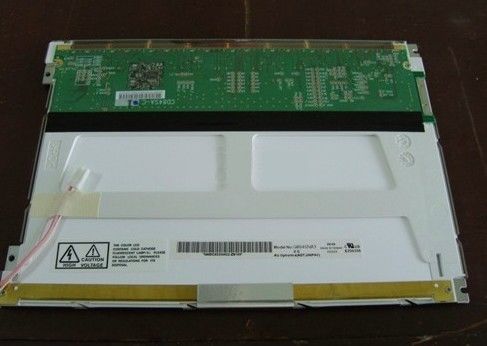

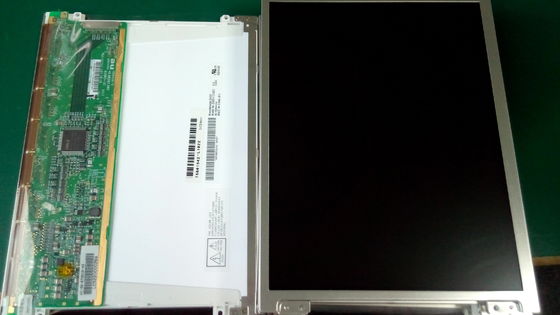

Product Details:
|
| MODEL NUMBER: | B084SN02 V0 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 8.4INCH | RESOLUTION: | 800×600 RGB |
| BRIGHTNESS: | 150CD/M2 | Lamp Type: | CCFL |
| Signal Interface: | LVDS | TEMPERATURE RANGE: | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| Highlight: | 50% NTSC TFT LCD Panel,AUO LCD Display WLED LVDS |
||
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| B084SN02 V0 | a-Si TFT-LCD , LCM | B084SN02 V.0 | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C | - |
| Screen Size : | 8.4" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 800(RGB)×600, SVGA | RGB Vertical Stripe | 0.071×0.213 mm | 0.213×0.213 mm [119PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 170.4×127.8 mm | 173.8×131.2 mm | 198.2×143.6 mm | 5.7/7.6 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 210±10g | - | - | ||
| Holes & Brackets : | Face mounting holes (4-Φ3.0) on left, right bezel | |||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 150 cd/m² (Typ.) | TN, Normally White, Transmissive | 350:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| - | 60/60/40/40 (Typ.)(CR≥10) |
10/25 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6638K | 262K (6-bit) | X:0.310; Y:0.330 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 48% | 66% | 50% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 49% | 36% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.60 (Max.)(9 points) | ||
| Reverse Scan : | No |
|---|---|
| Power Consumption : | 3.3W (Typ.) |
| Back-light Features: | Type | Position | Life(Hours) | Amount |
Shape | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type (Bottom side) | 10K(Typ.) | 1 pcs | Straight | - | |
| CCFL Electrical : | Input Voltage | Input Current | Power Consumption |
|||
| 490±49V | 3.0/4.6mA (Min./Typ.) | 2.3W (Typ.) | ||||
| Operating Frequency | Startup Voltage | |||||
| 50/60/80KHz (Min./Typ./MAX.) | 820/1070V (Max.)(Ta=+25/0℃) | |||||
| Interface Features : | CCFL Driver State | Physical Type | Interface Position | |||
| No | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JST | BHSR-02VS-1 | 1 pcs | 2 pins | 3.5 mm | BLL-2PINS-HL | |
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 230mA (Typ.) | 0.76W (Typ.) | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| LVDS (1 ch, 6-bit) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| HRS | DF19K-20P-1H | 1 pcs | 20 pins | 1.0 mm | LVDS-20P1C6B-070A | |
