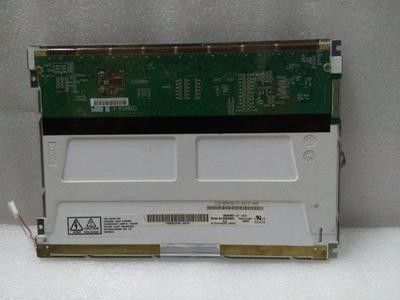

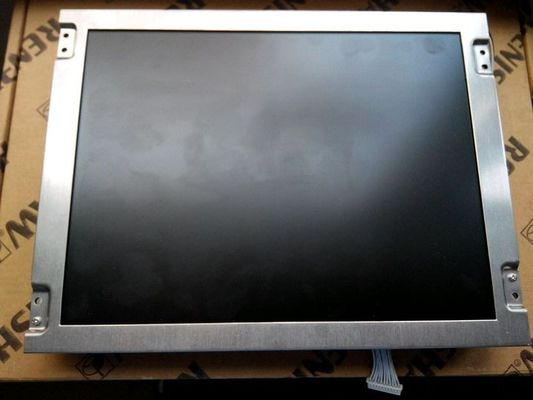

Product Details:
|
| MODEL NUMBER: | B084SN01 V0 | BRAND: | AUO |
|---|---|---|---|
| SIZE: | 8.4INCH | RESOLUTION: | 800×600RGB |
| BRIGHTNESS: | 150CD/M2 | TEMPERATURE RANGE: | Storage Temp.: -20 ~ 70 °C Operating Temp.: 0 ~ 50 °C |
| Lamp Type: | LVDS | ||
| Highlight: | 50% NTSC TFT LCD Panel,AUO LCD Display WLED LVDS |
||
| Basic Information : | Brand | Model | B084SN01 V0 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 8.4" | Alias | B084SN01 V.0 | |
| Environment : | Storage Temp. | -20 ~~ 70 °C | Operating Temp. | 0 ~~ 50 °C |
| RoHS | Vibration | - |
| Pixel Features : | Resolution | 800(RGB)×600, SVGA | Dot Pitch(mm) | 0.071×0.213 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.213×0.213 (H×V) [119PPI] | |
| Mechanical Size : | Active Area(mm) | 170.4(H) × 127.8(V) | Bezel Area(mm) | 173.8(H) × 131.2(V) |
| Outline Dim.(mm) | 203(H) × 142.5(V) | Depth(mm) | 5.7±0.3 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Mounting : | Face mounting holes (2-Φ3.0, 2-R1.5) | |||
| Other Spec : | Weight | 230±10g | Treatment | - |
| Basic Information : | Luminance(cd/m²) | 150 (Typ.) | Contrast Ratio | 250:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 40/40/30/10 (Min.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | 12 o'clock | Response(ms) | 20/30 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.310; Y:0.330 | Display Colors | 262K (6-bit) |
| Color Temperature | 6638K | White Uniformity | 1.80 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 49% | sRGB | 67% coverage |
| Adobe RGB | 51% coverage | DCI-P3 | 51% coverage | |
| Rec.2020 | 37% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Reverse Scan : | No |
|---|---|
| Power Consumption : | 2.98W |
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 220mA (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 0.73W (Typ.) | |||||
| Signal Type : | LVDS (1 ch, 6-bit) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| HRS | DF19K-20P-1H | 1 pcs | 20 pins | 1.0 mm | LVDS-20P1C6B-070A | |
| Backlight Features: | Shape | Straight | Type | CCFL | Position | Edge light type (Bottom side) |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 1 pcs | Life Time | 20K(Typ.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 490±49V | Current Supply | 3.0/4.6/5.1mA (Min./Typ./Max.) | ||
| Frequency | 50/60/80KHz (Min./Typ./MAX.) | Startup Voltage | 700/910V (Max.)(Ta=+25/0℃) | |||
| Consumption | 2.25W (Typ.) | |||||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JST | BHSR-02VS-1 | 1 pcs | 2 pins | 3.5 mm | BLL-2PINS-HL | |
| Backlight Driver : | No | |||||

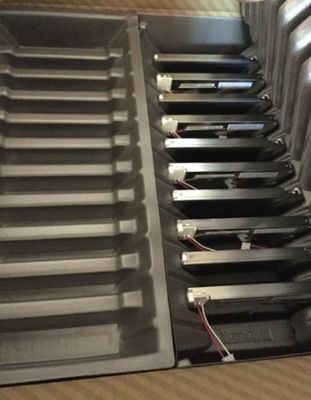

| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 30 pcs / box | 10 Kgs | 600×353×210 mm (L×W×H) |
