G057VN01 V2 5.7 AUOLife ≥ 50K hours，With LED Driver，U/D,L/R Reverse，Matte

G057VN01 V2 5.7 AUOLife ≥ 50K hours，With LED Driver，U/D,L/R Reverse，Matte
G057VN01 V2 5.7 AUOLife ≥ 50K hours，With LED Driver，U/D,L/R Reverse，Matte G057VN01 V2 5.7 AUOLife ≥ 50K hours，With LED Driver，U/D,L/R Reverse，Matte G057VN01 V2 5.7 AUOLife ≥ 50K hours，With LED Driver，U/D,L/R Reverse，Matte G057VN01 V2 5.7 AUOLife ≥ 50K hours，With LED Driver，U/D,L/R Reverse，Matte G057VN01 V2 5.7 AUOLife ≥ 50K hours，With LED Driver，U/D,L/R Reverse，Matte

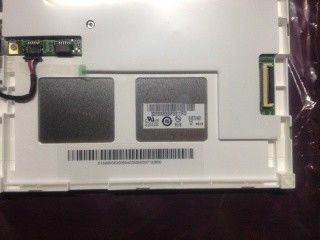

Large Image :  G057VN01 V2 5.7 AUOLife ≥ 50K hours，With LED Driver，U/D,L/R Reverse，Matte

Product Details:
Place of Origin: CHINA
Brand Name: AUO
Certification: ISO9002
Model Number: G057VN01 V2
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD70
Packaging Details: 14 pcs / box 16.5 Kgs 430×370×350 mm (L×W×H
Delivery Time: 1-3 days
Payment Terms: T/T, Western Union, PAYPAL, ESCROW
Supply Ability: 3000PCS/MONTH
Contact Now

G057VN01 V2 5.7 AUOLife ≥ 50K hours，With LED Driver，U/D,L/R Reverse，Matte

Description
SIZE: 5.7 PIXEL: 640(RGB)×480 (VGA) 141PPI
BRIGHTNESS: 700 (Typ.)(cd/m²) SIGNALTYPE: CMOS (1 Ch, 6-bit) , 33 Pins Connector
Viewing Angle: 80/80/70/70 (Typ.)(CR≥10) Bezel Opening: 118.2(W)×89.4(H) Mm
Environment: Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -30 ~ 85 °C
Highlight:

50% NTSC TFT LCD Panel

,

AUO LCD Display WLED LVDS

AUO G057VN01 V2 Mechanical Details

Pixel Features :
Pixel Format
640(RGB)×480, VGA
Dot Pitch
0.060×0.180 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.180×0.180 mm (H×V) [141PPI]
Mechanical Size :
Display Area
115.2×86.4 mm (H×V)
Bezel Area
118.2×89.4 mm (H×V)
Outline Dim.
144×104.6 mm (H×V)
Outline Depth
12.3/12.8 (Typ./Max.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
4:3 (H:V)
Shape Style

Holes & Brackets :
Rear mounting holes (4-Φ2.6)
Other Features :
Weight
150/165g (Typ./Max.)
Surface
Antiglare, Hard coating (3H)





AUO G057VN01 V2 Optical Details

Basic Information :
Brightness
700 cd/m² (Typ.)
Contrast Ratio
800:1 (Typ.) (Transmissive)
Viewing Angle
80/80/70/70 (Typ.)(CR≥10)
Optical Mode
TN, Normally White, Transmissive
Viewing Direction
12 o'clock
Response Time
15/10 (Typ.)(Tr/Td) ms
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Color Numbers
262K (6-bit)
Color Temperature
6485K
Uniformity
1.30 (Max.)(5 points)
1931 Color Gamlt :
NTSC Ratio
49%
sRGB
68% coverage
Adobe RGB
51% coverage
DCI-P3
51% coverage
Rec.2020
37% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :
Outdoor Visibility
Sunlight Readable
Transmittance
-





AUO G057VN01 V2 Application Features

Basic Information : Brand Name Model Name Type Model Alias
  G057VN01 V2 a-Si TFT-LCD , LCM 97.05G01.200
Maximum Ratings : RoHS Operating Temperature Storage Temperature Vibration Level
  -30 ~ 85 °C -30 ~ 85 °C



AUO G057VN01 V2 Electronics Features

Refresh Rate : 60Hz
Reverse Scan : Yes (U/D, L/R)
Power Consumption : 3.74W (Typ.)
Driver IC List: Built-in NT39207 + AU39413H-D
Time Controller (T-CON) : Embedded T-CON



AUO G057VN01 V2 Backlight Features

Back-light Features: Type Position Life(Hours) Amount  Shape Replacement
WLED Edge light type 50K(Min.) - - Replaceable
WLED Electrical : Input Voltage Input Current Power Consumption
35/40V (Typ./Max.) 80mA (Typ.) 2.8/3.2W (Typ./Max.)
Interface Features : WLED Driver State Physical Type Interface Position
With LED Driver Connector -
Interface Detail Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
JST SM06B-SRKS-G-TB 1 pcs 6 pins 1.0 mm
WLED Driver Electrical : Input Voltage Input Current Power Consumption
9.0/12.0/20.0V (Min./Typ./Max.) 0.27/0.97A (Typ./Max.) 3.24/3.56W (Typ./Max.)



AUO G057VN01 V2 Interface Features

Signal Electrical : Input Voltage Input Current Power Consumption
3.3V (Typ.) 140/155mA (Typ./Max.) 0.5/0.55W (Typ./Max.)
Voltage for Display Signals : 0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD
Interface Features : Signal Type Physical Type Interface Position
CMOS (1 ch, 6-bit) Connector -
Interface Detail : Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
STARCONN 089H33-000100-G2-R 1 pcs 33 pins 0.5 mm DRGB-33P1C6B-010A



G057VN01 V2 5.7 AUOLife ≥ 50K hours，With LED Driver，U/D,L/R Reverse，Matte 0
