Product Details:
|
| SIZE: | 18.5 | PIXEL: | 1920(RGB)×1080, FHD, 119PPI |
|---|---|---|---|
| BRIGHTNESS: | 350 Cd/m² (Typ.) | SIGNALTYPE: | LVDS (2 Ch, 8-bit) , 30 Pins Connector |
| High Light: | 50% NTSC TFT LCD Panel,AUO LCD Display WLED LVDS |
||
| Pixel Features : | |
|---|---|
| Mechanical Size : | |
| Outline Features : | |
| Holes & Brackets : | |
| Other Features : |
| Basic Information : | |
|---|---|
| Color Performance : | |
| 1931 Color Gamlt : |
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|

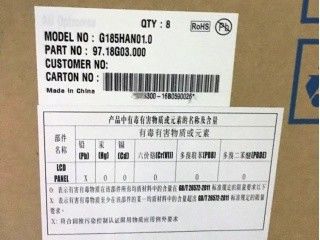

| G185HAN01.0 | a-Si TFT-LCD , LCM | - | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| -20 ~ 70 °C | -20 ~ 70 °C |
| Power Consumption : | 16.5W (Typ.) |
|---|---|
| Frame Rate : | 60Hz |
| Reverse Scan : | No |
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 0.8/1.0A (Typ./Max.) | 5.0V (Typ.) | 4.0/5.5W (Typ./Max.) | ||||
| Interface Features : | Position | Type | Interface | |||
| Connector | LVDS (2 ch, 8-bit) | |||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JAE | FI-XB30SSRLA-HF16 | 1 pcs | 1.0 mm | 30 pins | LVDS-30P2C8B-160A | |
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 7 strings | 9S7P | 50K(Min.) | No | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 55mA (Typ.) | 28.8/32.4V (Typ./Max.) | 12.5W (Max.) | ||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | Connector | With LED Driver | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| E&T | 3808K-F05N-12R | 1 pcs | 1.25 mm | 5 pins | ||
| Driver Electrical : | Current Input | Voltage Input | Consumption | |||
| 1.04A (Typ.) | 12.0±1.2V | 12.5/13.6W (Typ./Max.) | ||||
