G121XN01 V0 12.1 AUO Life ≥ 50K hours，With LED Driver，Upside I/F，Matte

G121XN01 V0 12.1 AUO Life ≥ 50K hours，With LED Driver，Upside I/F，Matte
G121XN01 V0 12.1 AUO Life ≥ 50K hours，With LED Driver，Upside I/F，Matte G121XN01 V0 12.1 AUO Life ≥ 50K hours，With LED Driver，Upside I/F，Matte

Large Image :  G121XN01 V0 12.1 AUO Life ≥ 50K hours，With LED Driver，Upside I/F，Matte

Product Details:
Place of Origin: CHINA
Brand Name: AUO
Certification: ISO9002
Model Number: G121XN01 V0
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD70
Packaging Details: 14 pcs / box 16.5 Kgs 430×370×350 mm (L×W×H
Delivery Time: 1-3 days
Payment Terms: T/T, Western Union, PAYPAL, ESCROW
Supply Ability: 3000PCS/MONTH
Contact Now

G121XN01 V0 12.1 AUO Life ≥ 50K hours，With LED Driver，Upside I/F，Matte

Description
SIZE: 12.1 PIXEL: 1024(2)×768(2), XGA, 105PPI
BRIGHTNESS: 500 Cd/m² (Typ.) SIGNALTYPE: LVDS (1 Ch, 6/8-bit) , 20 Pins Connector
Viewing Angle: 80/80/80/80 (Typ.)(CR≥10) Environment: Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -30 ~ 85 °C
Bezel Opening: 250.8(W)×189.4(H) Mm
High Light:

50% NTSC TFT LCD Panel

,

AUO LCD Display WLED LVDS

AUO G121XN01 V0 Mechanical Details

Pixel Features :
Resolution
1024(2)×768(2), XGA
Dot Pitch(mm)
0.120×0.120 (H×V)
Pixel Format
RGBW Rectangle
Pixel Pitch(mm)
0.240×0.240 (H×V) [105PPI]
Mechanical Size :
Active Area(mm)
245.76(H) × 184.32(V)
Bezel Area(mm)
250.8(H) × 189.4(V)
Outline Dim.(mm)
279(H) × 209(V)
Depth(mm)
6.0/9.0 (Typ./Max.)
Outline Features :
Form Style
Flat Rectangle
Shape Style

Aspect Ratio
4:3 (H:V)
Orientation
Landscape type
Mounting :
Face mounting holes (4-Φ3.4, 3-R1.7) on left and right bezel
Other Spec :
Weight
495g (Max.)
Treatment
Antiglare, Hard coating (3H)



AUO G121XN01 V0 Optical Details

Basic Information :
Luminance(cd/m²)
500 (Typ.)
Contrast Ratio
700:1 (Typ.) (Transmissive)
Viewing Angle
80/80/80/80 (Typ.)(CR≥10)
Display Mode
TN, Normally White, Transmissive
Best View on
-
Response(ms)
25/10 (Typ.)(Tr/Td)
Color Performance :
White Coordinate
Wx:0.310; Wy:0.330
Display Colors
262K/16.2M (6-bit / 6-bit + FRC)
Color Temperature
6638K
White Uniformity

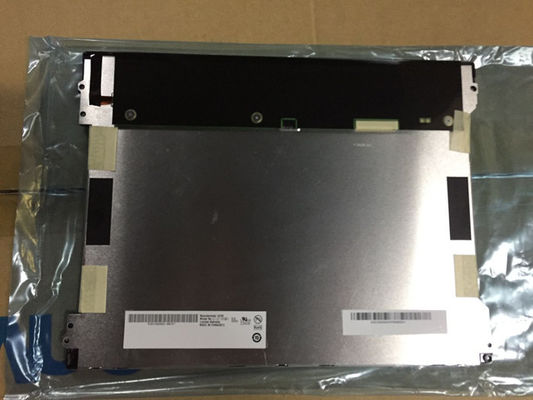

1.33 (Max.)(5 points) G121XN01 V0 12.1 AUO Life ≥ 50K hours，With LED Driver，Upside I/F，Matte 0
1931 Color Gamlt :
NTSC Ratio
71%
sRGB
93% coverage
Adobe RGB
72% coverage
DCI-P3
74% coverage
Rec.2020
53% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



AUO G121XN01 V0 Application Details

Basic Information : Brand   Model G121XN01 V0
Type LCM a-Si TFT-LCD Used For
Screen Size 12.1" Alias G121XN01 V.0, G121XN01.0
Environment : Storage Temp. -30 ~~ 85 °C Operating Temp. -30 ~~ 85 °C
RoHS   Vibration 1.5G (14.7 m/s²)



AUO G121XN01 V0 Electronics Details

Frame Rate : 60Hz
Reverse Scan : Yes (180°)
Power Consumption : 9.15W (Typ.)





AUO G121XN01 V0 Interface Details

Signal Electrical : Voltage Supply 3.3V (Typ.) Current Supply 590/710mA (Typ./Max.)
Consumption 1.95/2.34W (Typ./Max.)
Signal Type : LVDS (1 ch, 6/8-bit) Signal Voltage -
Interface Features : Position   Type Connector
Interface Detail : Brand Model Quantity Pins Pitch Pin Configuration
STM MSB240420E 1 pcs 20 pins 1.25 mm LVDS-20P1C8B-080B



AUO G121XN01 V0 Backlight Details

Backlight Features: Shape 2 strings Type WLED Position Edge light type (Top side)
Replacement Replaceable Quantity 9S2P Life Time 50K(Min.) (Hours)
Lamp Electrical : Voltage Supply 27.81/36V (Typ./Max.) Current Supply 110mA (Typ.)
Consumption 6.12/7.92W (Typ./Max.)
Interface Features : Position - Type Connector
Interface Detail : Brand Model Quantity Pins Pitch Pin Configuration
E&T 3808K-F05N-02R 1 pcs 5 pins 1.25 mm
Backlight Driver : With LED Driver
Driver Electrical : Voltage Supply 10.8/12.0/12.6V (Min./Typ./Max.) Current Supply 600mA (Typ.)
Consumption 7.2/10.0W (Typ./Max.)

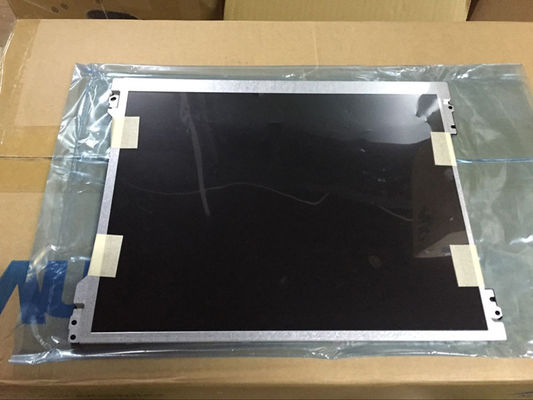

G121XN01 V0 12.1 AUO Life ≥ 50K hours，With LED Driver，Upside I/F，Matte 1
