Product Details:
|
| Pixel Number: | 800(RGB)×480 [WVGA] 133PPI | Screen Type: | A-Si TFT-LCD, LCM |
|---|---|---|---|
| Color Depth: | 262K/16.2M 60% NTSC | Luminance: | 400 Cd/m² (Typ.) |
| Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) | Contrast Ratio: | 750:1 (Typ.) (TM) |
| Respons: | 20/10 (Typ.)(Tr/Td) | Configuration: | RGB Vertical Stripe |
| Treatment: | Antiglare, Hard Coating (3H) | Max. Ratings: | 30 ~ 85 °C ; Storage Temperature: -30 ~ 85 °C |
| Highlight: | 50% NTSC TFT LCD Panel,AUO LCD Display WLED LVDS |
||
1. HIGHEST QUALITY STANDARD DISPLAYS:
| Pixel Features : | Pixel Format | 800(RGB)×480 [WVGA] | Dot Pitch | 0.0635×0.1905 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.1905×0.1905 mm (H×V) [133PPI] | |
| Mechanical Size : | Display Area | 152.4×91.44 mm (H×V) | Bezel Area | 155.2×94.24 mm (H×V) |
| Outline Dim. | 170×111 mm (H×V) | Outline Depth | 7.5±0.5 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 15:9 (H:V) | Shape Style | ||
| Holes & Brackets : | Without | |||
| Other Features : | Weight | 165/175g (Typ./Max.) | Surface | Antiglare, Hard coating (3H) |
| Basic Information : | Brightness | 400 cd/m² (Typ.) | Contrast Ratio | 750:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | - | Response Time | 20/10 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.330 | Color Numbers | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Temperature | 6638K | White Uniformity | 1.30 (Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 59% | sRGB | 83% coverage |
| Adobe RGB | 62% coverage | DCI-P3 | 62% coverage | |
| Rec.2020 | 44% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |

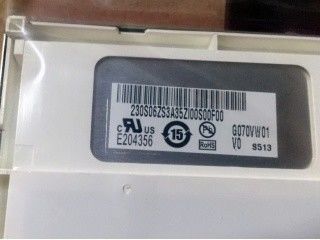

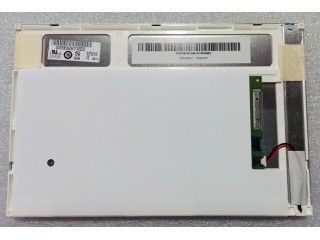

| Basic Info : | Panel Brand | Panel Model | G070VW01 V0 | |
|---|---|---|---|---|
| Diagonal Size | 7.0" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | G070VW01 V.0, G070VW01.0 | |
| Reliability : | Operating Temp. | -30 ~ 85 °C | Storage Temp. | -30 ~ 85 °C |
| RoHS State | Vibration Rating | 1.5G (14.7 m/s²) |
| Frame Frequency : | 60Hz |
|---|---|
| Reverse Scan : | Yes (U/D, L/R) |
| Power Consumption : | 3.7W (Typ.) |
| Back-light Features: | Lamp Shape | 1 string | Lamp Type | WLED | Life Time | 50K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | Replaceable | Amount | - | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 32.0/36.5V (Typ./Max.) | Current Input | 80/84mA (Typ./Max.) | ||
| Consumption | 2.56W (Typ.) | |||||
| Interface Features : | Type | Connector | Position | - | Lamp Driver | With LED Driver |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| E&T | 3808K-F04N-02R | 1.25 mm | 4 pins | 1 pcs | ||
| Driver Electrical : | Voltage Input | 12.0V (Typ.) | Current Input | 240mA (Typ.) | ||
| Consumption | 2.88/3.6W (Typ./Max.) | |||||
| Signal Systerm : | LVDS (1 ch, 6/8-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 0.24/0.26A (Typ./Max.) | ||
| Consumption | 0.8/0.96W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| HRS | DF19LA-20P-1H | 1.0 mm | 20 pins | 1 pcs | LVDS-20P1C8B-140A | |
