262K 40%NTSC 800cd/m2 8.4 Inch TFT LCD NL6448BC26-22F

262K 40%NTSC 800cd/m2 8.4 Inch TFT LCD NL6448BC26-22F
262K 40%NTSC 800cd/m2 8.4 Inch TFT LCD NL6448BC26-22F 262K 40%NTSC 800cd/m2 8.4 Inch TFT LCD NL6448BC26-22F

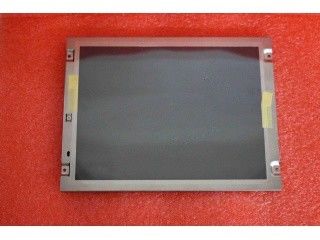

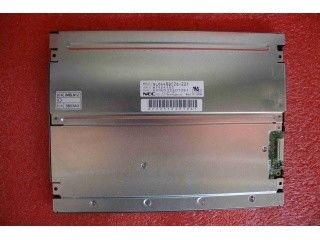

Large Image :  262K 40%NTSC 800cd/m2 8.4 Inch TFT LCD NL6448BC26-22F

Product Details:
Brand Name: NEC
Certification: ISO9001
Model Number: NL6448BC26-22F
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: With Original Package
Delivery Time: 1-3 days
Payment Terms: T/T, Western Union, PAYPAL, ESCROW
Supply Ability: 800PCS/MONTH

262K 40%NTSC 800cd/m2 8.4 Inch TFT LCD NL6448BC26-22F

SIZE: 8.4 Inch RESOLUTION: 640(RGB)×480, VGA, 95PPI
BRIGHTNESS: 800cd/m2 (Typ.) TEMPERATURE: Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 M/s²)
Signal Interface: CMOS (1 Ch, 6-bit) , 31 Pins Connector Lamp Type: 9S4P WLED , 50K Hours , Without Driver
High Light:

800cd/m2 8.4 Inch TFT LCD


40%NTSC 8.4 Inch TFT LCD




As a distributor,Sapientia display provides technical support for the development of every type and class of LCD, from the design stage right through to the production phase, while guaranteeing the highest quality standards.


Our products can be customized for various applications and market sectors, including (but not limited to): automotive, medical, building automation, white goods, digital signage, security, transportation and industrial.


2.NEC NL6448BC26-22F Optical Features:

Basic Information : Luminance (cd/m²) Viewing Angle (L/R/U/D) Response Time (ms)
800 (Typ.) 80/80/80/80 (Typ.)(CR≥10) 3/15 (Typ.)(Tr/Td)
Best View on Display Mode Contrast Ratio
- TN, Normally White, Transmissive 1000 : 1 (Typ.) (Transmissive)
Dispaly Color : Color Temperature Display Colors White Coordinate
6485K 262K (6-bit) X:0.313; Y:0.329
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
40% 56% 42%
DCI-P3 Coverage Rec.2020 Coverage Remarks
42% 30% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Variation : 1.25/1.40 (Typ./Max.)(5 points)
Performance : 3D Tech Sunlight Visibility Reflectance
- Sunlight Readable -


3.NEC NL6448BC26-22F Mechanical Features:

Panel Size : 8.4"
Pixel Features : Pixel Format Pixel Configuration Pixel Pitch (mm) Dot Pitch (mm)
640(RGB)×480 [VGA] RGB Vertical Stripe 0.267×0.267 [95PPI] 0.089×0.267
Mechanical Size : Active Area (mm) Bezel Area (mm) Outline Dimension (mm) Outline Depth (mm)
170.88(H) × 128.16(V) 174.0(H) × 131.4(V) 200(H) × 152(V) 10.5±0.5 mm
Outline Features : Form Factor Orientation Aspect Ratio Shape Style
Flat Rectangle Landscape type 4:3 (H:V)
Mounting : Face mounting holes (4-Ф2.8)
Other Detail : Weight Panel Cover Treatment
330/350g (Typ./Max.) - Clear, Hard coating (3H)


4.NEC NL6448BC26-22F Backlight Features:

Lamp Features: Type Position Quantity  Shape Life(Hours) Lamp Exchange
WLED Edge light type (Top side) 9S4P 4 strings 50K(Typ.) Replaceable (84LHS12)
WLED Electrical : Voltage Supply Current Supply Power
29.7/34.2V (Typ./Max.) 25/27.5mA (Typ./Max.)
Interface Features : Position Backlight Driver Type
- No Connector
Interface Detail : Brand Model Pin Pitch Pin Amount Quantity Configuration
JST SM08B-SRSS-TB 1.0 mm 8 pins 1 pcs BLE-8PINS-ACACACAC
