152PPI 600cd/m2 Hight Brightness LCD Panel NL10276BC16-06

152PPI 600cd/m2 Hight Brightness LCD Panel NL10276BC16-06
152PPI 600cd/m2 Hight Brightness LCD Panel NL10276BC16-06 152PPI 600cd/m2 Hight Brightness LCD Panel NL10276BC16-06

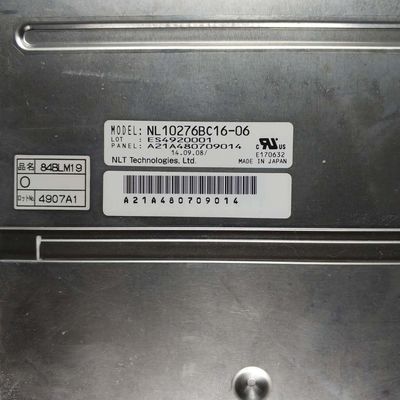

Large Image :  152PPI 600cd/m2 Hight Brightness LCD Panel NL10276BC16-06

Product Details:
Brand Name: NLT
Certification: ISO9001
Model Number: NL10276BC16-06
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: With Original Package
Delivery Time: 1-3 days
Payment Terms: T/T, Western Union, PAYPAL, ESCROW
Supply Ability: 5000PCS/MONTH

152PPI 600cd/m2 Hight Brightness LCD Panel NL10276BC16-06

SIZE: 8.4 Inch RESOLUTION: 1024(RGB)×768 (XGA) 152PPI
BRIGHTNESS: 600 (Typ.)(cd/m2) TEMPERATURE: Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 80 °C ; Vibration Level: 2.0G (19.6 M/s²)
Signal Interface: LVDS (1 Ch, 6/8-bit) , 20 Pins Connector Lamp Type: 4 Strings WLED , 100K Hours , No Driver
High Light:

600cd/m2 Hight Brightness LCD Panel


152PPI Hight Brightness LCD Panel




As a distributor,Sapientia display provides technical support for the development of every type and class of LCD, from the design stage right through to the production phase, while guaranteeing the highest quality standards.


Our products can be customized for various applications and market sectors, including (but not limited to): automotive, medical, building automation, white goods, digital signage, security, transportation and industrial.


2.NEC NL10276BC16-06 Mechanical Details:

Pixel Features : Pixel Format 1024(RGB)×768 [XGA] Dot Pitch 0.0555×0.1665 mm (H×V)
Configuration RGB Vertical Stripe Pixel Pitch 0.1665×0.1665 mm (H×V) [152PPI]
Mechanical Size : Display Area 170.496×127.872 mm (H×V) Bezel Area 174.0×131.4 mm (H×V)
Outline Dim. 200×152 mm (H×V) Outline Depth 8.2±0.5 mm
Outline Features : Form Factor Flat Rectangle Orientation Landscape type
Aspect Ratio 4:3 (H:V) Shape Style
Holes & Brackets : Face mounting holes (4-Ф2.6) on left, right bezel
Other Features : Weight 260/280g (Typ./Max.) Surface Clear, Hard coating (3H)


3.NEC NL10276BC16-06 Optical Details:

Basic Information : Brightness 600 cd/m² (Typ.) Contrast Ratio 1000:1 (Typ.) (Transmissive)
Viewing Angle 88/88/88/88 (Typ.)(CR≥10) Optical Mode UA-SFT, Normally Black, Transmissive
Viewing Direction Symmetry Response Time 13/12 (Typ.)(Tr/Td) (ms)
Color Performance : Chromaticity Wx:0.313; Wy:0.329 Color Numbers 262K/16.7M (6-bit / 6-bit + Hi-FRC)
Color Temperature 6485K White Uniformity 1.25/1.40 (Typ./Max.)(5 points)
1931 Color Gamlt : NTSC Ratio 71% sRGB 93% coverage
Adobe RGB 72% coverage DCI-P3 74% coverage
Rec.2020 53% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


4.NEC NL10276BC16-06 Backlight Details:

Back-light Features: Lamp Shape 4 strings Lamp Type WLED Life Time 100K(Typ.) (Hours)
Replacement Replaceable (84LHS19) Amount 4 strings Position Edge light type
Lamp Electrical : Voltage Input 19.1/21.2/23.2V (Min./Typ./Max.) Current Input 50/55mA (Typ./Max.)
Interface Features : Type Connector Position   Lamp Driver No
Interface Detail : Brand Model Pin Pitch Pins Amount Configuration
JST SM08B-SRSS-TB 1.0 mm 8 pins 1 pcs BLE-8PINS-ACACACAC


5. FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.


Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.


Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.


Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
