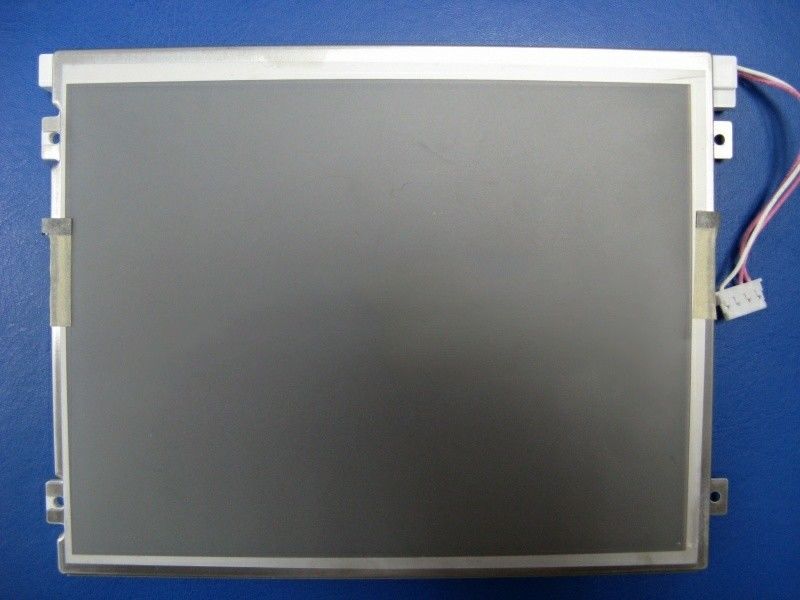

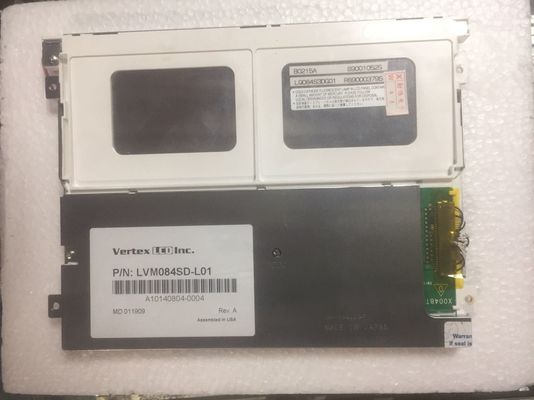

Product Details:
|
| SIZE: | 8.4 Inch | RESOLUTION: | 800(RGB)×600 (SVGA) 119PPI |
|---|---|---|---|
| BRIGHTNESS: | 400cd/m² (Typ.) | TEMPERATURE: | Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 M/s²) |
| Signal Interface: | LVDS (1 Ch, 6/8-bit) , Connector 20 Pins | Lamp Type: | 2 Pcs CCFL , 50K Hours , No Driver |
| Highlight: | SVGA 119PPI TFT LCD Panel,CCFL 8.4" TFT LCD Panel,LQ084S3LG01 |
||
As a distributor,Sapientia display provides technical support for the development of every type and class of LCD, from the design stage right through to the production phase, while guaranteeing the highest quality standards.
Our products can be customized for various applications and market sectors, including (but not limited to): automotive, medical, building automation, white goods, digital signage, security, transportation and industrial.
2. Sharp LQ084S3LG01 Mechanical Details:
| Pixel Features : | Pixel Format | 800(RGB)×600 [SVGA] | Dot Pitch | 0.071×0.213 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.213×0.213 mm (H×V) [119PPI] | |
| Mechanical Size : | Display Area | 170.4×127.8 mm (H×V) | Bezel Area | 175.5×133.0 mm (H×V) |
| Outline Dim. | 199.5×149.5 mm (H×V) | Outline Depth | 11.6 (Typ.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | ||
| Holes & Brackets : | Face mounting holes (4-Ф3.2) on left, right slugs | |||
| Other Features : | Weight | 405g (Max.) | Surface | Antiglare, Hard coating |
3.Sharp LQ084S3LG01 Optical Details:
| Basic Information : | Brightness | 400 cd/m² (Typ.) | Contrast Ratio | 600:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 65/65/55/60 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | 6 o'clock | Response Time | 5/21 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Temperature | 6485K | White Uniformity | - |
4.Sharp LQ084S3LG01 Backlight Details:
| Back-light Features: | Lamp Shape | Straight | Lamp Type | CCFL | Life Time | 50K(Typ.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | Replaceable (LQ0DDB0013) | Amount | 2 pcs | Position | Edge light type (Top side) | |
| Lamp Electrical : | Voltage Input | 420±40V | Current Input | 3.0/6.0/6.5mA (Min./Typ./Max.) | ||
| Frequency | 50/80KHz (Min./Max.) | Kick-off Voltage | 890/1070V (Max.)(Ta=+25/-30℃) | |||
| Consumption | 5.0W (Typ.) | |||||
| Interface Features : | Type | Connector | Position | - | Lamp Driver | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | BHR-04VS-1 | 4.0 mm | 4 pins | 1 pcs | BLL-4PINS-HHNL | |
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
