15.0" G150XTN06.8 1024×768 XGA 85PPI LCD Industrial Panel

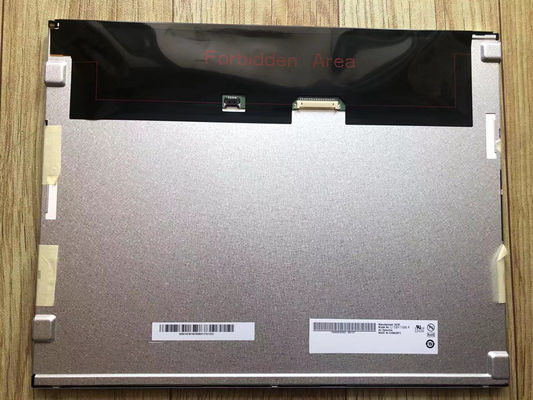

Large Image : 15.0" G150XTN06.8 1024×768 XGA 85PPI LCD Industrial Panel

Product Details:

Place of Origin:	CHINA
Brand Name:	AUO
Certification:	ISO9002
Model Number:	G150XTN06.8

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	USD70
Packaging Details:	14 pcs / box 16.5 Kgs (Max.) 430×370×350 mm (L×W×H)
Delivery Time:	1-3 days
Payment Terms:	T/T, Western Union, PAYPAL, ESCROW
Supply Ability:	3000PCS/MONTH

Contact Now

15.0" G150XTN06.8 1024×768 XGA 85PPI LCD Industrial Panel

Description

SIZE:	15.0INCH	RESOLUTION:	1024(RGB)×768 [XGA]
SignalType:	LVDS	OPerating:	-30 ~ 85 °C
BRIGHTNESS:	450 Cd/m² (Typ.)
High Light:	XGA 85PPI LCD Industrial Panel , 1024×768 LCD Industrial Panel , G150XTN06.8

AUO 15.0NCH G150XTN06.8 1024(RGB)×768 [XGA] 85PPIStorage Temperature: -30 ~ 85 °C industrial panel

AUO G150XTN06.8 Application Details

Basic Information :

Brand

Model

G150XTN06.8

Type

a-Si TFT-LCD , LCM

Used For

Screen Size

15.0 inch

Alias

Environment :

Storage Temp.

-30 ~ 85 °C

Operating Temp.

-30 ~ 85 °C

RoHS

Vibration

1.5G (14.7 m/s²)

AUO G150XTN06.8 Mechanical Details

Pixel Features :

Resolution

1024(RGB)×768, XGA

Dot Pitch(mm)

0.099×0.297 (H×V)

Pixel Format

RGB Vertical Stripe

Pixel Pitch(mm)

0.297×0.297 (H×V) [85PPI]

Mechanical Size :

Active Area(mm)

304.128(H) × 228.096(V)

Bezel Area(mm)

311.9(H) × 236.85(V)

Outline Dim.(mm)

326.5(H) × 253.5(V)

Depth(mm)

10.0 (Max.)

Outline Features :

Form Style

Flat Rectangle

Shape Style

Aspect Ratio

4:3 (H:V)

Orientation

Landscape type

Mounting :

Side mounting holes (4-M3) on left, right bezel

Other Spec :

Weight

1.00Kgs (Max.)

Treatment

Antiglare

AUO G150XTN06.8 Optical Details

Basic Information :

Luminance(cd/m²)

450 (Typ.)

Contrast Ratio

800:1 (Typ.) (Transmissive)

Viewing Angle

80/80/70/80 (Typ.)(CR≥10)

Display Mode

TN, Normally White, Transmissive

Best View on

Response(ms)

5.7/2.3 (Typ.)(Tr/Td)

Color Performance :

White Coordinate

Wx:0.313; Wy:0.329

Display Colors

262K/16.2M (6-bit / 6-bit + FRC)

Color Temperature

6485K

White Uniformity

1.25/1.33 (Typ./Max.)(9 points)

1931 Color Gamlt :

NTSC Ratio

60%

sRGB

84% coverage

Adobe RGB

63% coverage

DCI-P3

63% coverage

Rec.2020

45% coverage

Remarks

sRGB (Rec.709, BT.709), Rec.2020 (BT.2020

AUO G150XTN06.8 Interface Details

Signal Electrical :

Voltage Supply

3.3V (Typ.)

Current Supply

1.0/1.2A (Typ./Max.)

Consumption

3.3/3.96W (Typ./Max.)

Signal Type :

LVDS (1 ch, 6/8-bit)

Logic Voltage

Interface Features :

Position

Type

Connector

Interface Detail :

Brand

Model

Pitch

Pins

Quantity

Pin Configuration

STM

MSB240420HD

1.25 mm

20 pins

1 pcs

LVDS-20P1C8B-135A
