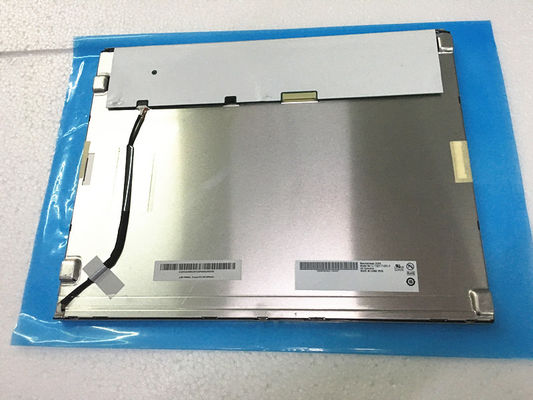

Product Details:
|
| SIZE: | 15.0INCH | RESOLUTION: | 1024(RGB)×768, XGA, 85PPI |
|---|---|---|---|
| BRIGHTNESS: | 450 Cd/m² (Typ.) | TEMPERATURE: | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -30 ~ 85 °C |
| Signal Interface: | LVDS (1 Ch, 6/8-bit) , 20 Pins Connector | ||
| Highlight: | 450cd/m2 Industrial Lcd Panel,Industrial Lcd Panel XGA 85PPI,G150XTN06.0 LCD Diaplay |
||
| Basic Information : | Brand | Model | G150XTN06.0 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 15.0" | Alias | - | |
| Environment : | Storage Temp. | -30 ~~ 85 °C | Operating Temp. | -30 ~~ 85 °C |
| RoHS | Vibration | 1.5G (14.7 m/s²) |
| Pixel Features : | Resolution | 1024(RGB)×768, XGA | Dot Pitch(mm) | 0.099×0.297 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.297×0.297 (H×V) [85PPI] | |
| Mechanical Size : | Active Area(mm) | 304.128(H) × 228.096(V) | Bezel Area(mm) | 307.4(H) × 231.3(V) |
| Outline Dim.(mm) | 326.5(H) × 253.5(V) | Depth(mm) | 12.0±0.5 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Mounting : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Spec : | Weight | 1.00Kgs (Max.) | Treatment | Antiglare, Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 450 (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/70/80 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | - | Response(ms) | 5.7/2.3 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.311; Y:0.322 | Display Colors | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Temperature | 6658K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 64% | sRGB | 85% coverage |
| Adobe RGB | 66% coverage | DCI-P3 | 66% coverage | |
| Rec.2020 | 47% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 450/750mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 1.49/2.48W (Typ./Max.) | |||||
| Signal Type : | LVDS (1 ch, 6/8-bit) | Signal Voltage | - | |||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| STM | MSB240420E | 1 pcs | 20 pins | 1.25 mm | LVDS-20P1C8B-135A | |
| Backlight Features: | Shape | - | Type | WLED | Position | Edge light type (Bottom side) |
|---|---|---|---|---|---|---|
| Replacement | Replaceable | Quantity | - | Life Time | 70K(Typ.) (Hours) | |
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| E&T | 3808K-F05N-12R | 1 pcs | 5 pins | 1.25 mm | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 12.0±1.2V | Current Supply | 0.75A (Typ.) | ||
| Consumption | 9.0W (Typ.) | |||||
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 15 pcs / box | 18.5 Kgs (Max.) | 434×380×353 mm (L×W×H) |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 304.128(W)×228.096(H) mm, outline size of 326.5(W)×253.5(H)×12.5(D) mm, viewing area size of 307.4(W)×231.3(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 1.00Kgs (Max.). As a TN, Normally White, Transmissive LCM product, G150XTN06.0 can provides 450 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/70/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 5.7/2.3 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 262K/16.2M colors, also with performance of color gamut 60% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 50K hours, With LED Driver. G150XTN06.0 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.)
