G150XTN03.5 15.0 Inch 1024×768 XGA 350cd/m2 Viewing Angle80/80/70/80 AUO TFT LCD

G150XTN03.5 15.0 Inch 1024×768 XGA 350cd/m2 Viewing Angle80/80/70/80 AUO TFT LCD
G150XTN03.5 15.0 Inch 1024×768 XGA 350cd/m2 Viewing Angle80/80/70/80 AUO TFT LCD G150XTN03.5 15.0 Inch 1024×768 XGA 350cd/m2 Viewing Angle80/80/70/80 AUO TFT LCD G150XTN03.5 15.0 Inch 1024×768 XGA 350cd/m2 Viewing Angle80/80/70/80 AUO TFT LCD G150XTN03.5 15.0 Inch 1024×768 XGA 350cd/m2 Viewing Angle80/80/70/80 AUO TFT LCD

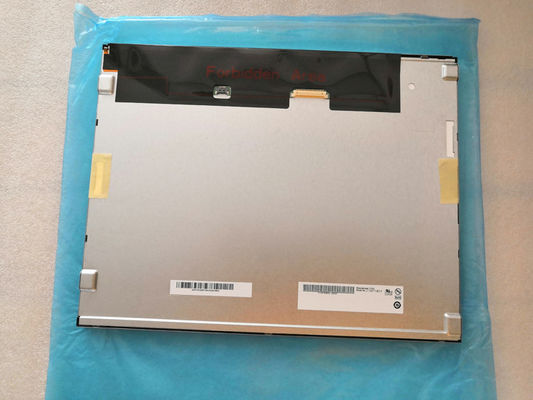

Large Image :  G150XTN03.5 15.0 Inch 1024×768 XGA 350cd/m2 Viewing Angle80/80/70/80 AUO TFT LCD

Product Details:
Place of Origin: CHINA
Brand Name: AUO
Certification: ISO9002
Model Number: G150XTN03.5
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: 70USD
Packaging Details: 14 pcs / box 16.5 Kgs 430×370×350 mm (L×W×H
Delivery Time: 1-3 days
Payment Terms: T/T, Western Union, PAYPAL, ESCROW
Supply Ability: 3000PCS/MONTH

G150XTN03.5 15.0 Inch 1024×768 XGA 350cd/m2 Viewing Angle80/80/70/80 AUO TFT LCD

Description
SIZE: 15.0 INCH PIXEL: 1024(RGB)×768 (XGA) 85PPI
BRIGHTNESS: 350cd/m² (Typ.) SIGNALTYPE: LVDS (1 Ch, 6/8-bit) , Connector 20 Pins
High Light:

1024×768 XGA AUO TFT LCD

,

350cd/m2 AUO TFT LCD

,

G150XTN03.5

AUO G150XTN03.5 Application Features

Basic Information : Manufacturer Panel Model Panel Type Alias
G150XTN03.5 15.0 Inch 1024×768 XGA 350cd/m2 Viewing Angle80/80/70/80 AUO TFT LCD 0 G150XTN03.5 a-Si TFT-LCD , LCM -
Environment : RoHS State Operating Temp. Storage Temp. Vibration Level
G150XTN03.5 15.0 Inch 1024×768 XGA 350cd/m2 Viewing Angle80/80/70/80 AUO TFT LCD 1 0 ~ 65 °C -20 ~ 65 °C



AUO G150XTN03.5 Optical Features

Basic Information : Luminance (cd/m²) Viewing Angle (L/R/U/D) Response Time (ms)
350 (Typ.) 80/80/70/80 (Typ.)(CR≥10) 5.7/2.3 (Typ.)(Tr/Td)
Best View on Display Mode Contrast Ratio
- TN, Normally White, Transmissive 800 : 1 (Typ.) (Transmissive)
Dispaly Color : Color Temperature Display Colors White Coordinate
6485K 262K/16.2M (6-bit / 6-bit + FRC) X:0.313; Y:0.329
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
60% 84% 63%
DCI-P3 Coverage Rec.2020 Coverage Remarks
63% 45% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



AUO G150XTN03.5 Mechanical Features

Panel Size : 15.0"
Pixel Features : Pixel Format Pixel Configuration Pixel Pitch (mm) Dot Pitch (mm)
1024(RGB)×768 [XGA] RGB Vertical Stripe 0.297×0.297 [85PPI] 0.099×0.297
Mechanical Size : Active Area (mm) Bezel Area (mm) Outline Dimension (mm) Outline Depth (mm)
304.128(H) × 228.096(V) 313.55(H) × 237.25(V) 326.5(H) × 253.5(V) 10.0 (Max.) mm
Outline Features : Form Factor Orientation Aspect Ratio Shape Style
Flat Rectangle Landscape type 4:3 (H:V)
Mounting : Side mounting holes (4-M3) on left, right bezel
Other Detail : Weight Panel Cover Treatment
1.20Kgs (Max.) - Antiglare, Hard coating (3H)

AUO G150XTN03.5 Summary

AU Optronics Corp. (hereafter called AUO) G150XTN03.5 is a 15.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of 0 ~ 65°C , a storage temperature range of -20 ~ 65°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized by Panelook in the following: WLED Backlight, Life ≥ 70K hours, With LED Driver, 6/8 bit, Matte . Based on its features, Panelook recommend that this model be applied to Industrial etc. According to the information stored in Panelook this model mass production on Q4, 2016, Now this model is in production. There are 46 items stock and 46 suppliers of this model on Panelook. We inputted this model's specification on Nov 4 2016 for the first time, and the latest update on Oct 11 2023. If you want to embed G150XTN03.5 LCM in your future product, Panelook strongly recommend that you should contact with AUO or it's distributor to learn lateast production and specification detail. The G150XTN03.5 production status marked on Panelook.com is for reference only and should not be used as the basis for the user's decision making. All specification details are inputted by Panelook engineers according to datasheet, but we cannot guarantee the spec listed is right.
